Product description

The Aco® range is engineered with the highest standard of cleanliness as its primary focus. Constructed from 304L-grade stainless steel, it meets rigorous hygiene standards. This proactive approach aims to limit the possibility of harmful bacterial and pathogen contamination in food, in compliance with BS EN 1672, BS EN ISO 14159. It serves as the preferred choice for environments such as food production facilities, high-care areas, or pharmaceutical cleanrooms.

This versatile fixed height gully with standard edge is perfect where one point of drainage is required on tiled, concrete or resin floors. It comes in a variety of sizes to cater to your specific requirements. The gully is designed with an upper surface edge in-fill that helps to reduce movement in relation to the surrounding floor, thereby lowering the chances of floor cracks that could potentially house microorganisms. This design ensures a high level of hygiene and safety in your environment.

The gully’s design prioritises hygiene, with hygienic joints which are formed by a deep-drawn body to ensure smooth contours, eliminating any crevices that could potentially house harmful bacteria. The entire unit undergoes a thorough pickle passivation process, ensuring joints are free from corrosion, reducing crevices and potential bacteria traps.

Its designed for easy inspection and maintenance includes a fully removable and easily cleaned stainless steel foul air trap, which mitigates the risk of food particle accumulation and rodent entry and a slip-resistant ladder grating which is fully welded with rounded corners, it is designed to handle a load class of N250 which is ideal for heavy duty industrial areas; subject to forklift traffic, such as; food processing areas, chemical or processing plants.

The gully has complete drainability ensured by the dry sump design. This eliminates the presence of stagnant water, odours, microbial growth, and potential chemical hazards. The dry sump design guarantees that there is no standing wastewater in the base of the gully.

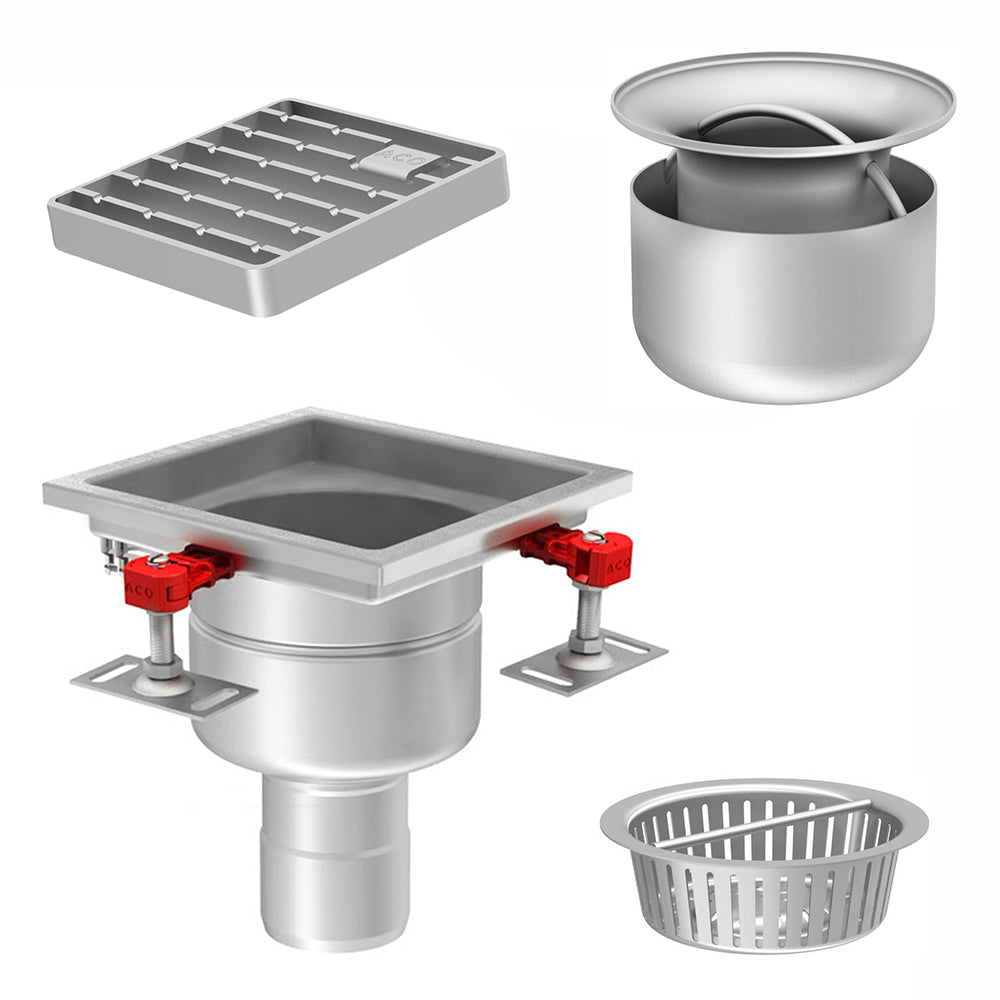

This easy to assemble kit includes the height fixed gully, slip resistant ladder grating, foul air trap and silt basket. We offer these with a choice of top size, body diameter and vertical or horizontal outlet to cater to your specific requirements.

Talk to us about 316L-grade stainless steel options and bulk buy discounts.

Dimensions

<ul>
<li>
Body diameter: 157mm
<ul>
<li>
Vertical outlet/gulley top:
<ul>
<li>200 x 200 x 193 (overall height +99)mm</li>
<li>250 x 250 x 198 (overall height +99)mm</li>
</ul>
</li>
<li>
Horizontal outlet/gulley top:
<ul>
<li>200 x 200 x 169mm</li>
<li>250 x 250 x 174mm</li>
</ul>
</li>
</ul>
</li>
</ul>
Flow rates: Vertical - 3.5Ltr per sec, Horizontal - 2.8Ltr per sec.
<ul>
<li>
Body diameter: 218mm
<ul>
<li>
Vertical outlet/gulley top:
<ul>
<li>300 x 300 x 200 (overall height +97)mm
</li>
</ul>
</li>
<li>
Horizontal outlet/gulley top:
<ul>
<li>300 x 300 x 177mm
</li>
</ul>
</li>
</ul>
</li>
</ul>
Flow rates: Vertical - 5Ltr per sec, Horizontal - 4.4Ltr per sec.
Spigot diameter: 110mm

Specifications

<ul>
<li>304L-grade stainless steel 1.5mm thick.</li>
<li>Ladder grating.</li>
<li>Fully removeable and easy to clean stainless steel foul air tray.</div></li>
<li>Fully pickled and passivated.</li>
<li>Fully inspectable and cleanable.</li>
<li>Adjustable easy fix levelling feet.</li>
</ul>

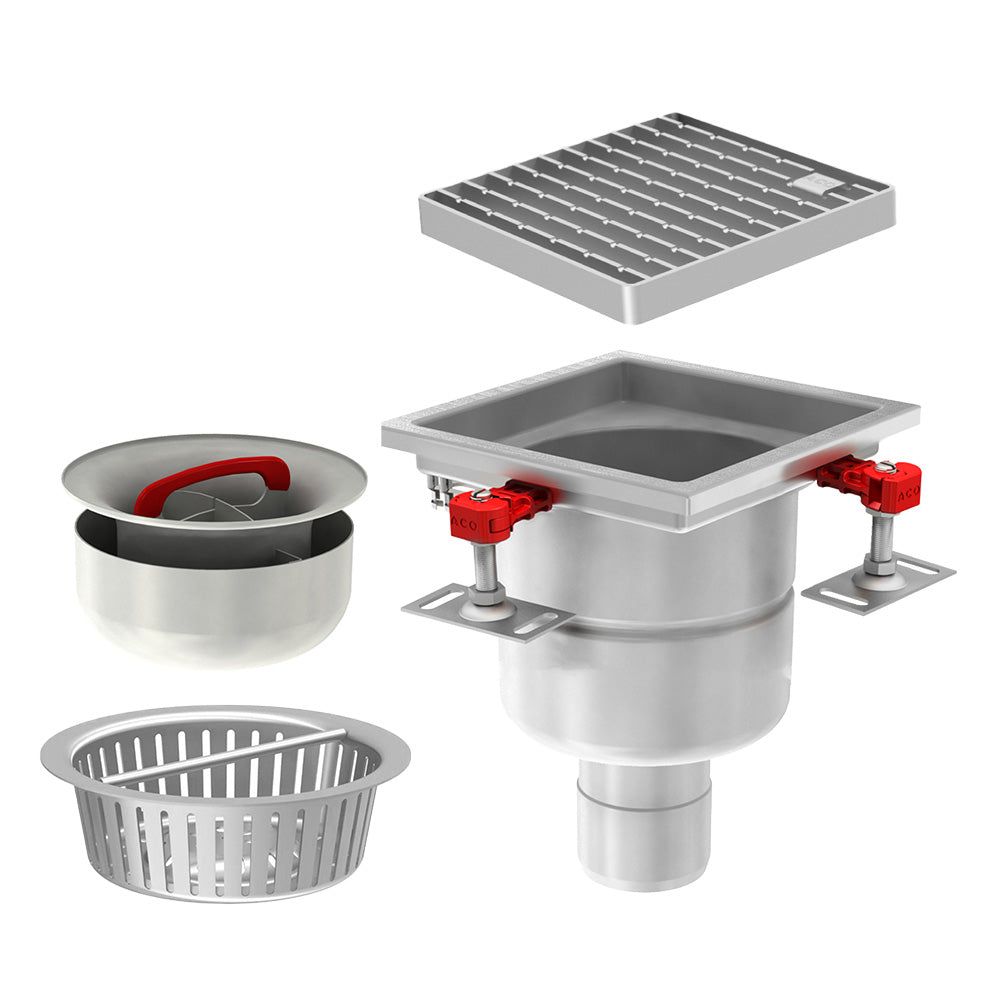

Aco® fixed height gully kit standard edge

This versatile, easy-to-assemble fixed height gully kits are perfect where one point of drainage is required in a food production, high care or a pharmaceutical cleanroom environment.

Price breaks are available on this product:

5% off when you spend over £5,000 on ANY combination of Aco products.

Product code :

HWDR-FGKS157V20

£419

£502.80 (Inc. VAT)

Shipping calculated at checkout.

Choose orientation

Vertical

Vertical Horizontal

Choose body diameter

157mm

157mm 218mm

Choose gully top size

200 x 200mm

200 x 200mm 250 x 250mm 300 x 300mm

Quantity

Download specsheet
