Aco Hygiene First® drainage channel kit vinyl edge

This versatile easy to assemble channel kit is perfect where one point of drainage with a large water catchment area is required is required in a food production, high care or a pharmaceutical cleanroom environment. They are available in either 650 or 1550mm length with a vertical or horizontal orientation and a 157mm or 218mm body diameter.


Price breaks are available on this product:
- 5% off when you spend over £5,000 on ANY combination of Aco products.
HWDR-HCKV157V65

Price:
Sale price£1,125.00
Sale price£1,350.00 (Inc. VAT)

Description

The Aco Hygiene First® range is engineered with the highest standard of cleanliness as its primary focus. Constructed from 304L-grade stainless steel, it meets rigorous hygiene standards. This proactive approach aims to limit the possibility of harmful bacterial and pathogen contamination in food, in compliance with BS EN 1672, BS EN ISO 14159, and EHEDG Document 8,13, & 44 for drainage element design.  It serves as the preferred choice for environments such as food production facilities, high-care areas, or pharmaceutical cleanrooms.

This drainage channel kit with vinyl edge is perfect where one point of drainage with a large water catchment area is required on vinyl covered floors. It comes in a variety of sizes to cater to your specific requirements. The channel is designed with an upper surface edge in-fill that helps to reduce movement in relation to the surrounding floor, thereby lowering the chances of floor cracks that could potentially house microorganisms. This design ensures a high level of hygiene and safety in your environment.

The channels design prioritizes hygiene, with all internal radii being equal to or larger than 3mm, significantly enhancing the effectiveness of cleaning and there are no sharp edges for optimum users’ safety. The V-shape channel ensure positive drainage even at low flow rates eliminating the stagnant odour of wastewater. All hygienic joints are fully welded, and the entire unit undergoes a thorough pickle passivation process, ensuring joints are free from corrosion, reducing crevices and potential bacteria traps.

The kit comes with the hygiene first telescopic gully, its designed for complete drain ability, easy inspection and maintenance.  It includes a fully removable and easily cleaned stainless steel foul air trap, which mitigates the risk of food particle accumulation and rodent entry and the slip resistant ladder grating, which is fully welded with rounded corners, it is designed to handle a load class of M125. (for areas with vehicular traffic) The gully includes a telescopic friction ring and a location flange or integrated membrane flange for either adhesive bonding or mechanical clamp.

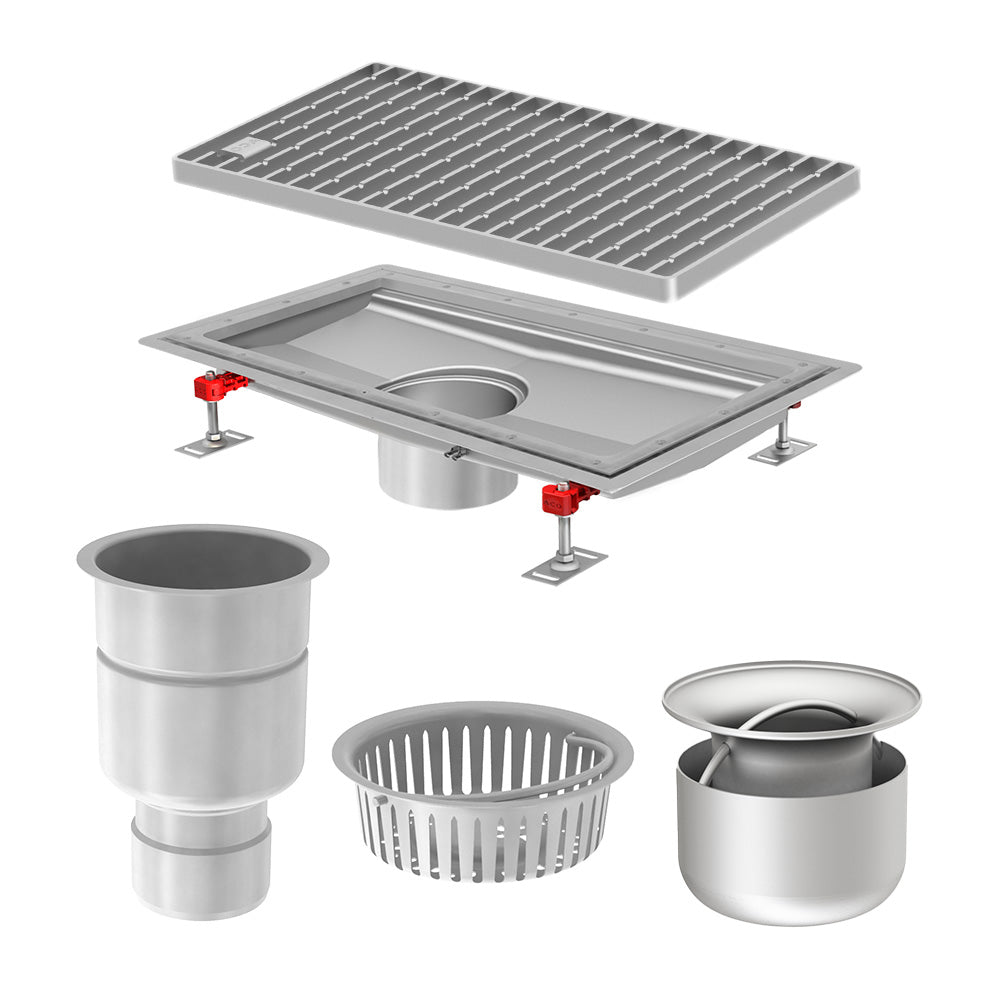

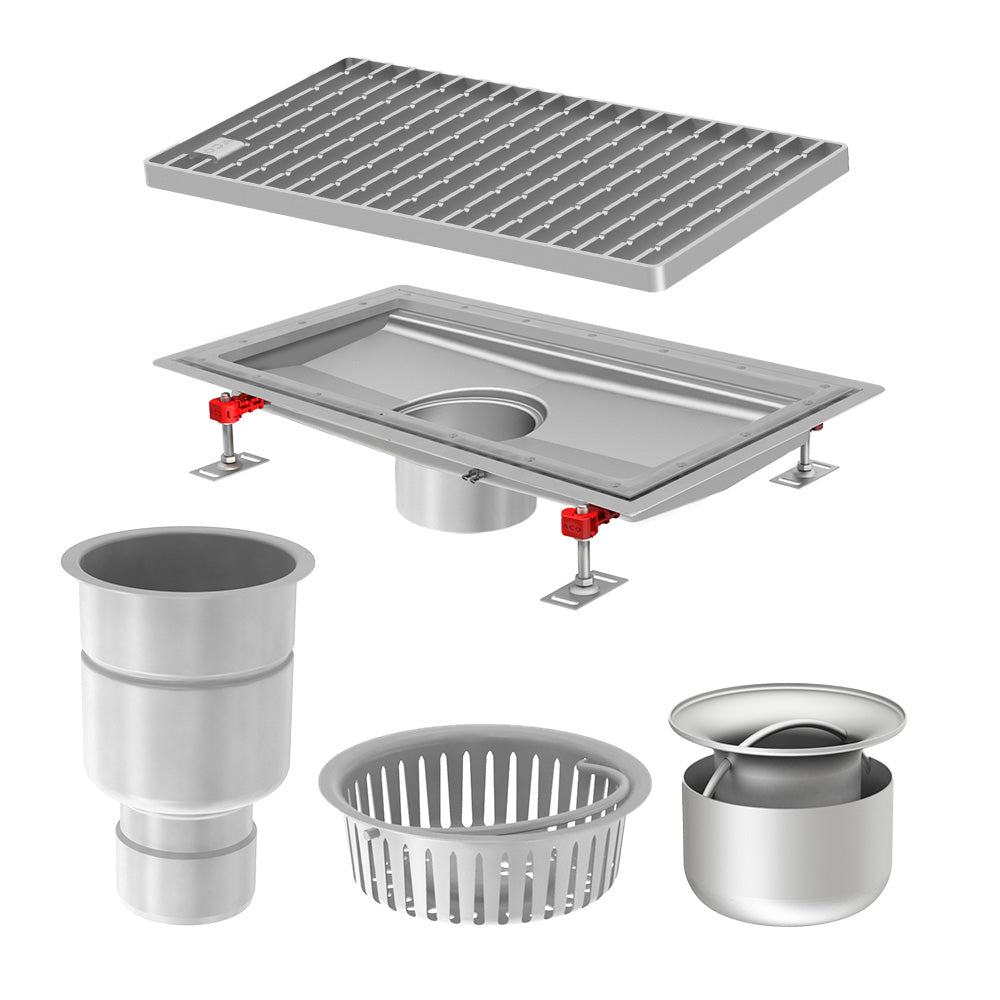

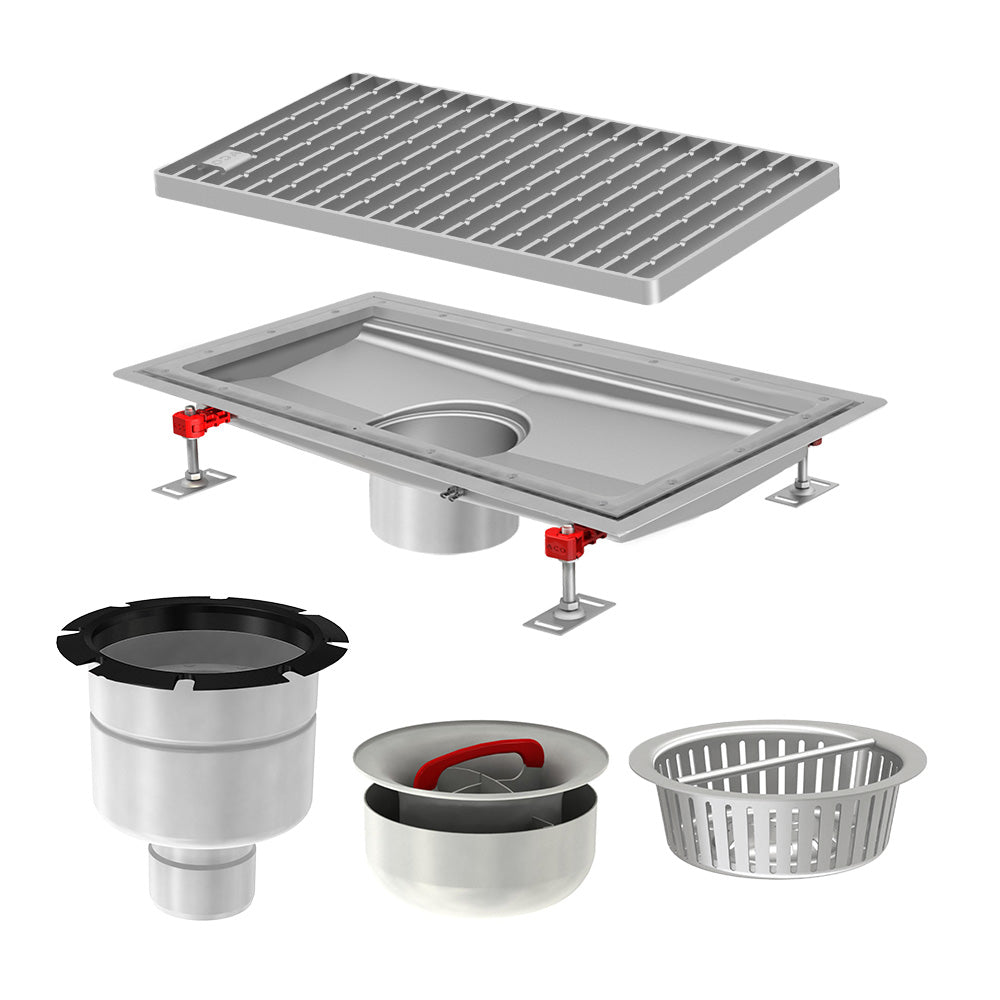

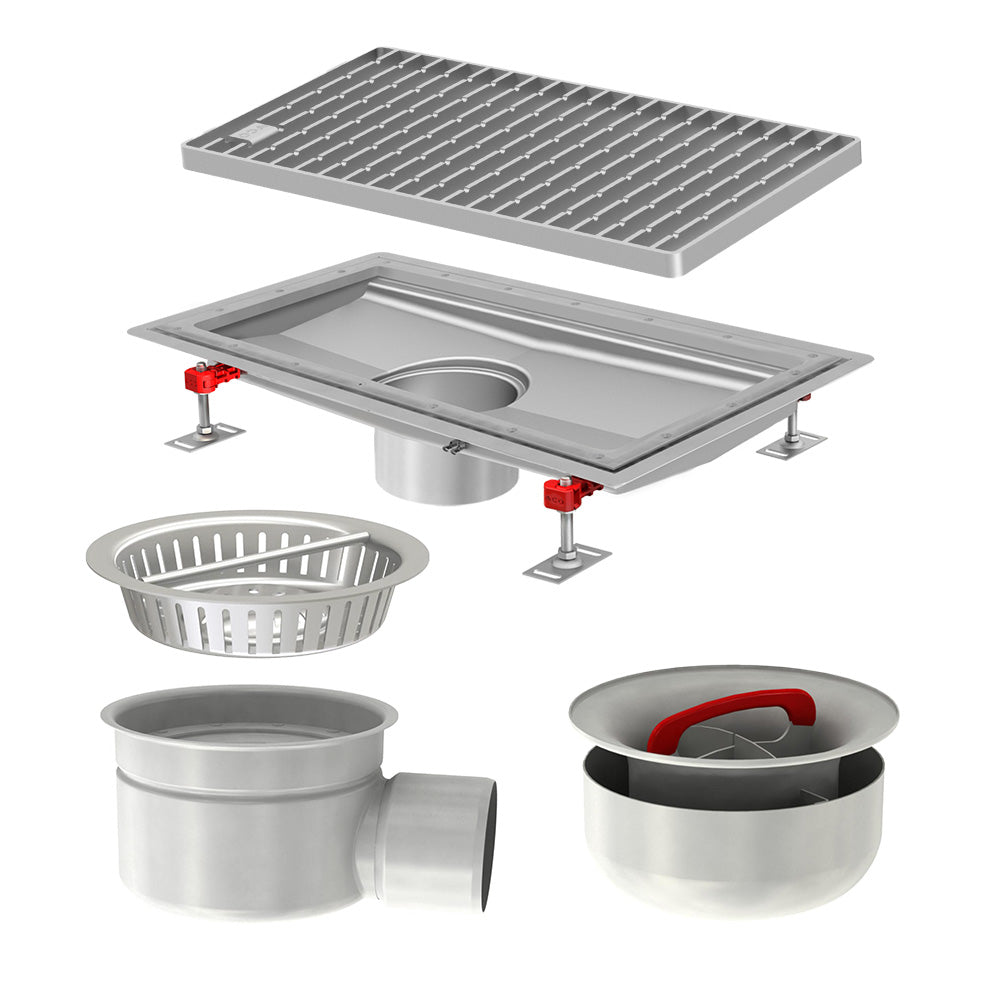

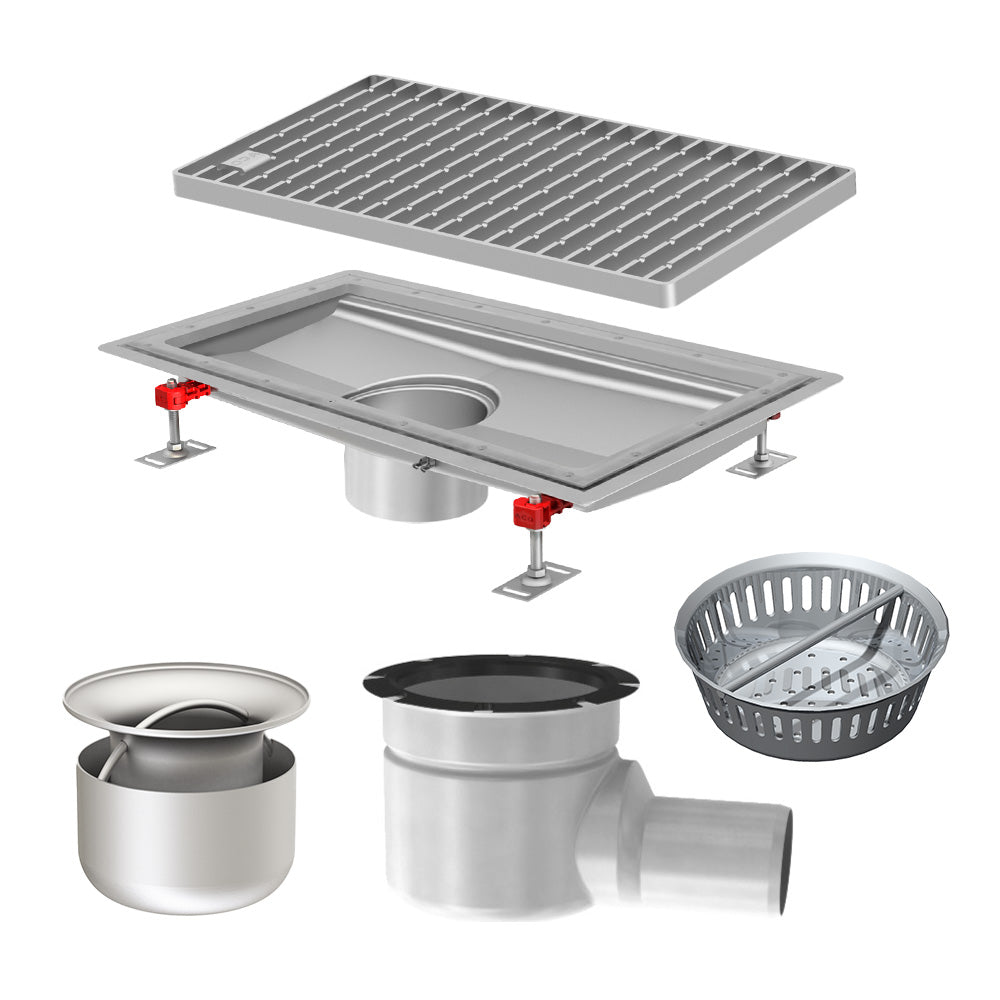

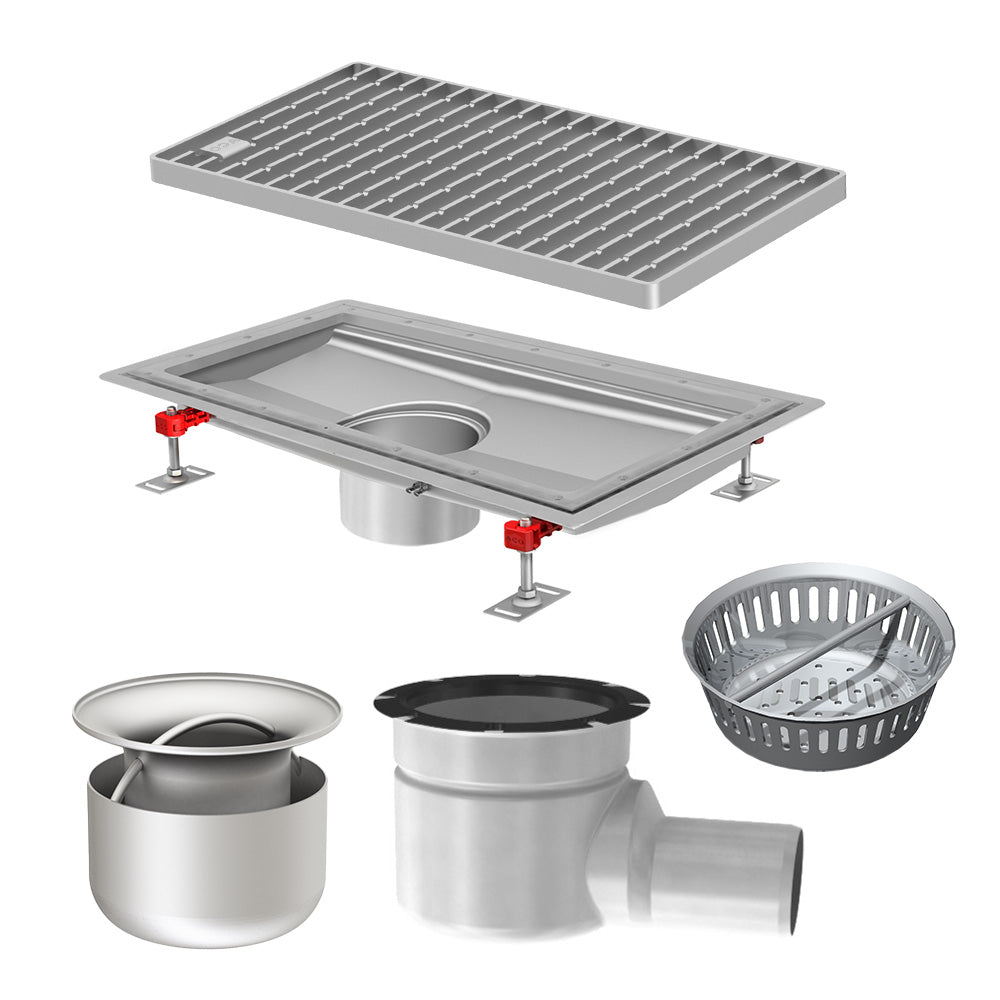

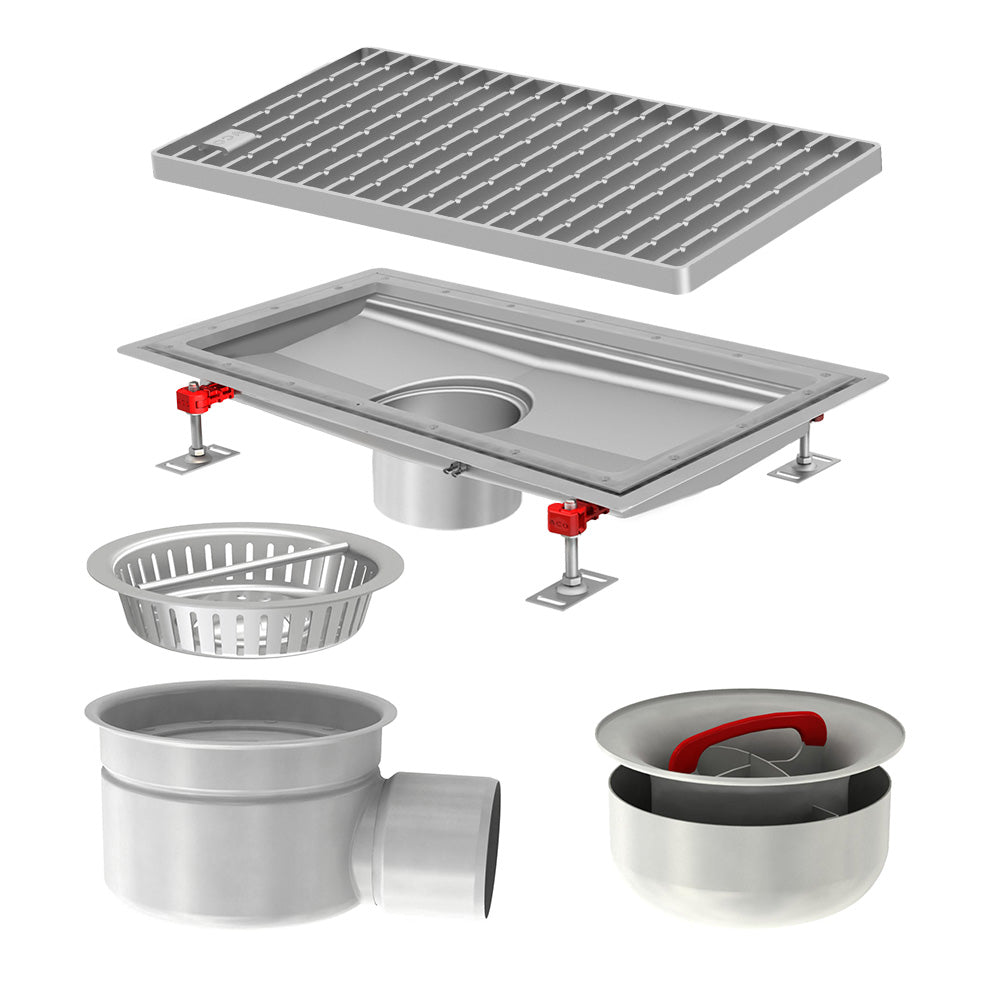

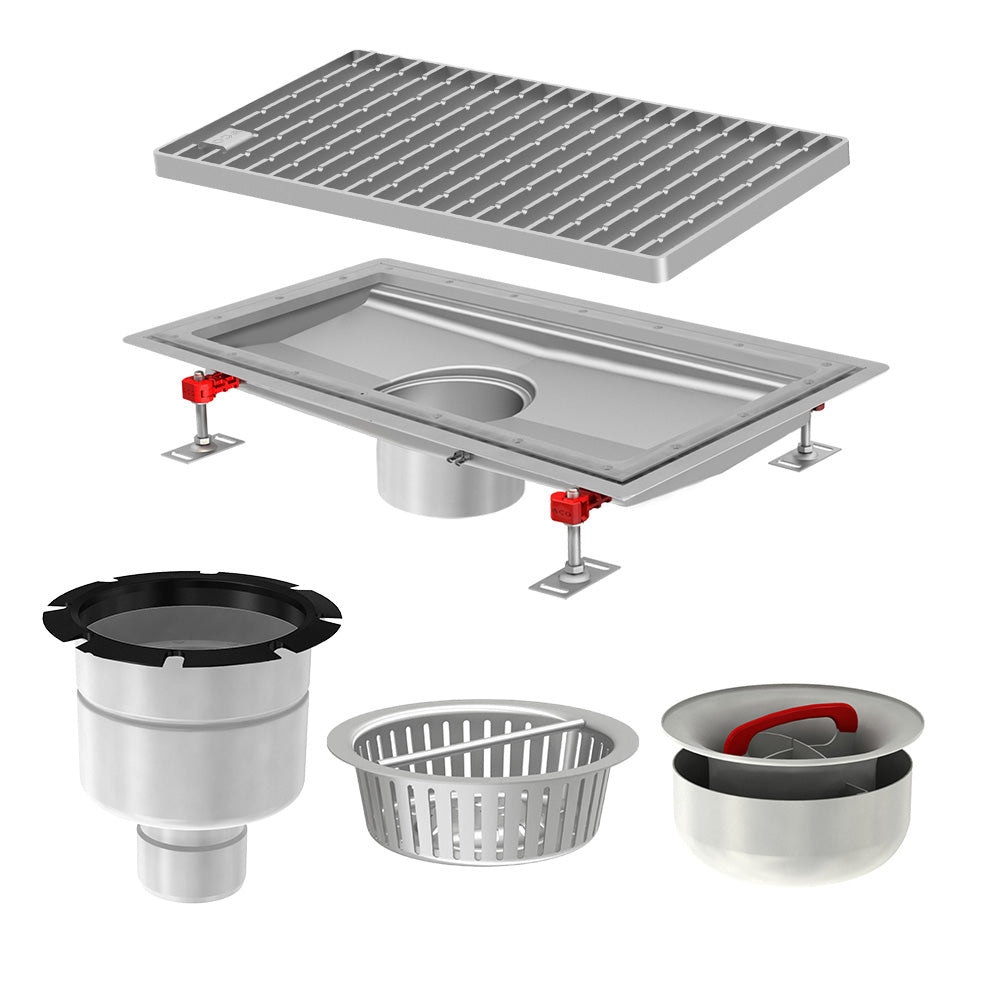

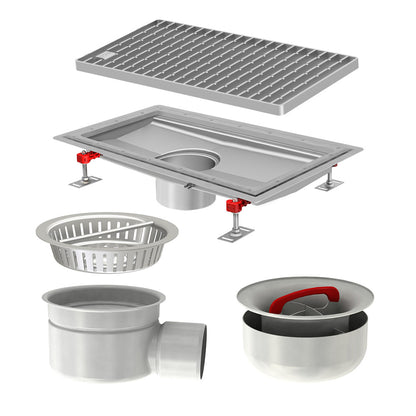

This easy to assemble kit includes the telescopic gully, ladder grating, foul air trap and silt basket.  We offer these with a choice of channel lengths, flow rates and vertical or horizontal outlet to cater to your specific requirements.

Talk to us about 316L-grade stainless steel options and bulk buy discounts.

Kit Includes:

1 x Channel length and grating: 650mm or 1550mm

  • 650 x 300 x 60mm
    • Ladder grate: 2 x ladder grates 268 x 298 x 20mm
  • 1550 x 300 x 60mm
    • Ladder grate: 3 x ladder grates 268 x 499 x 20mm
  • Channel spigot: Dia 142mm
  • Adjustable easyfix levelling: 60-110mm

Plus

1 x Telescopic gully and body diameter: 157mm or 218mm

Body diameter: 157mm

  • Vertical: 182mm flange diameter x 170mm (+99) depth
    • Silt basket: Dia: 159mm Depth: 50mm - 0.6 litres
    • Gully flow rate: 3.9-4.4 litres per second
  • Horizontal: 182mm flange diameter x 147mm depth
    • Silt basket: Dia: 159mm Depth: 26mm - 0.3 litres
    • Gully flow rate: 2.8-4.4 litres per second

Body diameter: 218mm

  • Vertical: 240mm flange Diameter x 170mm (+99) depth
    • Silt basket: Dia: 222mm Depth: 50mm – 1.4 litres
    • Gully flow rate: 5.0 – 6.2 litres per second
  • Horizontal: 182mm flange diameter x 147mm depth
    • Silt basket: Dia: 222mm Depth: 26mm - 0.7 litres
    • Gully flow rate: 2.8-4.4 litres per second
    Spigot gully: 110mm

Specifications

  • 304L-grade stainless steel 1.5mm thick.
  • Slip resistant ladder grating.
  • Fully removeable and easy to clean stainless steel foul air tray.
  • Fully inspectable and cleanable.
  • Load class capacity M125.
  • Adjustable easy fix levelling feet and anchors for fixing in concrete.
