The Aco Hygiene First® range is engineered with the highest standard of cleanliness as its primary focus. Constructed from 304L-grade stainless steel, it meets rigorous hygiene standards. This proactive approach aims to limit the possibility of harmful bacterial and pathogen contamination in food, in compliance with BS EN 1672, BS EN ISO 14159, and EHEDG Document 8,13, & 44 for drainage element design. It serves as the preferred choice for environments such as food production facilities, high-care areas, or pharmaceutical cleanrooms.

This drainage channel kit with standard edge is perfect where one point of drainage with a large water catchment area is required on tiled, concrete or resin floors. It comes in a variety of sizes to cater to your specific requirements. The channel is designed with an upper surface edge in-fill that helps to reduce movement in relation to the surrounding floor, thereby lowering the chances of floor cracks that could potentially house microorganisms. This design ensures a high level of hygiene and safety in your environment.

The channels design prioritizes hygiene, with all internal radii being equal to or larger than 3mm, significantly enhancing the effectiveness of cleaning and there are no sharp edges for optimum users’ safety. The V-shape channel ensure positive drainage even at low flow rates eliminating the stagnant odour of wastewater. All hygienic joints are fully welded, and the entire unit undergoes a thorough pickle passivation process, ensuring joints are free from corrosion, reducing crevices and potential bacteria traps.

The kits come with the hygiene first telescopic gully, its designed for complete drain ability, easy inspection and maintenance. It includes a fully removable and easily cleaned stainless steel foul air trap, which mitigates the risk of food particle accumulation and rodent entry and the slip resistant ladder grating, which is fully welded with rounded corners, it is designed to handle a load class of M125. (for areas with vehicular traffic) The gully includes a Telescopic friction ring and a location flange or integrated membrane flange for either adhesive bonding or mechanical clamp.

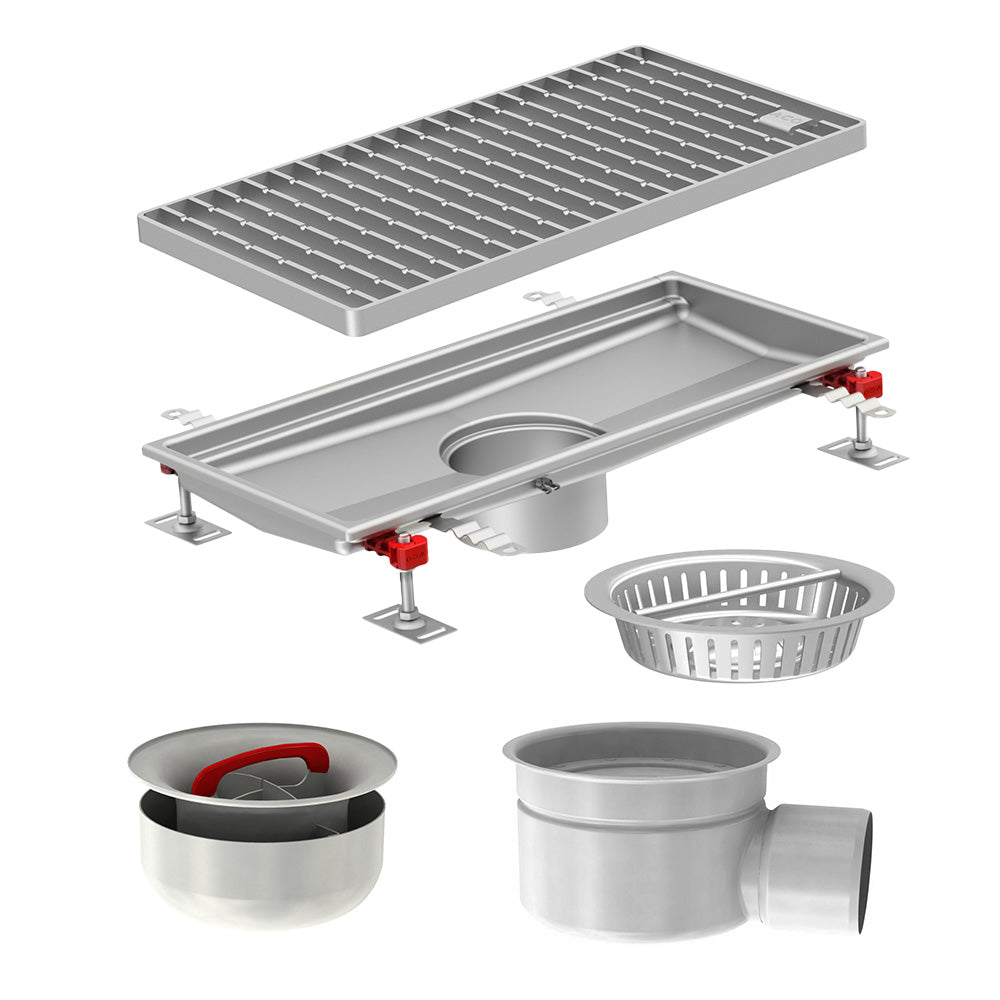

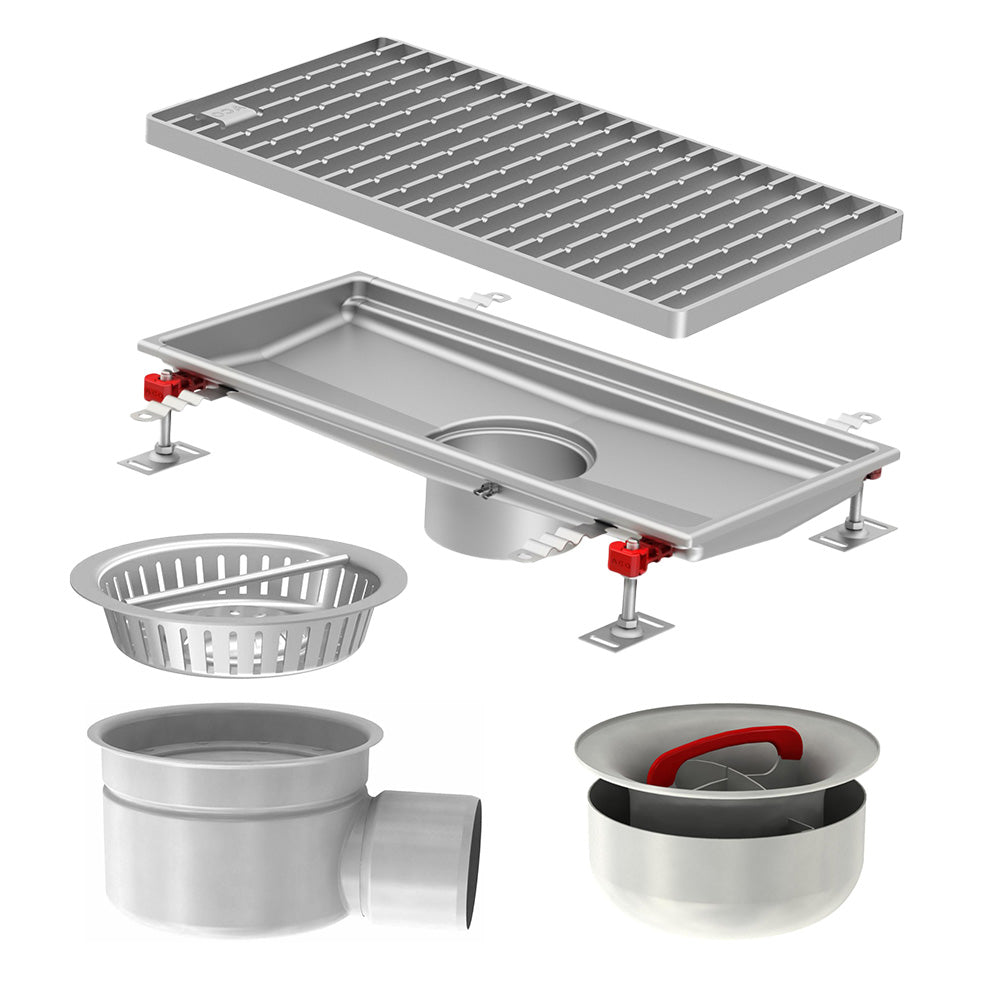

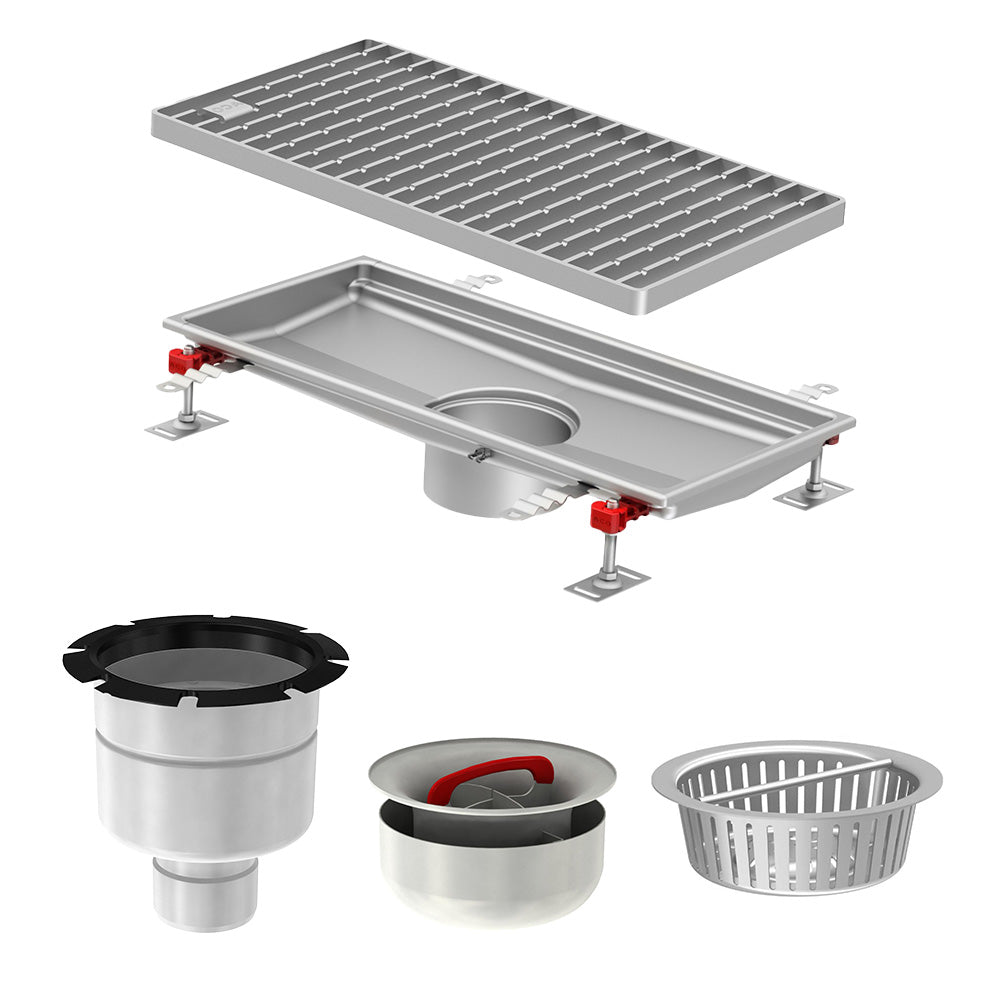

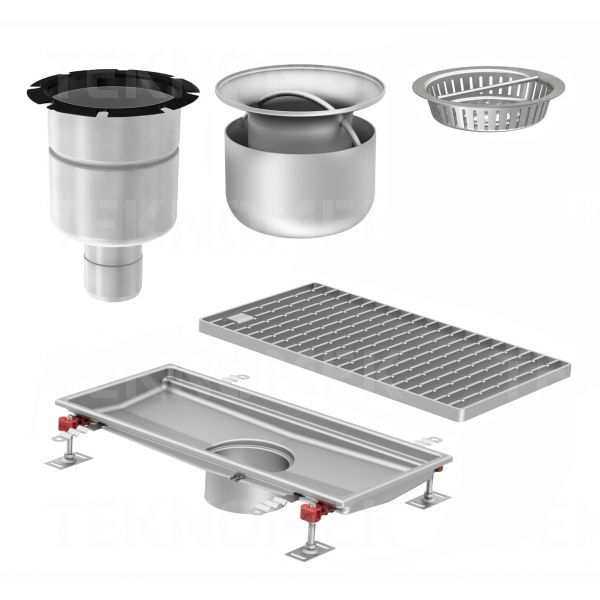

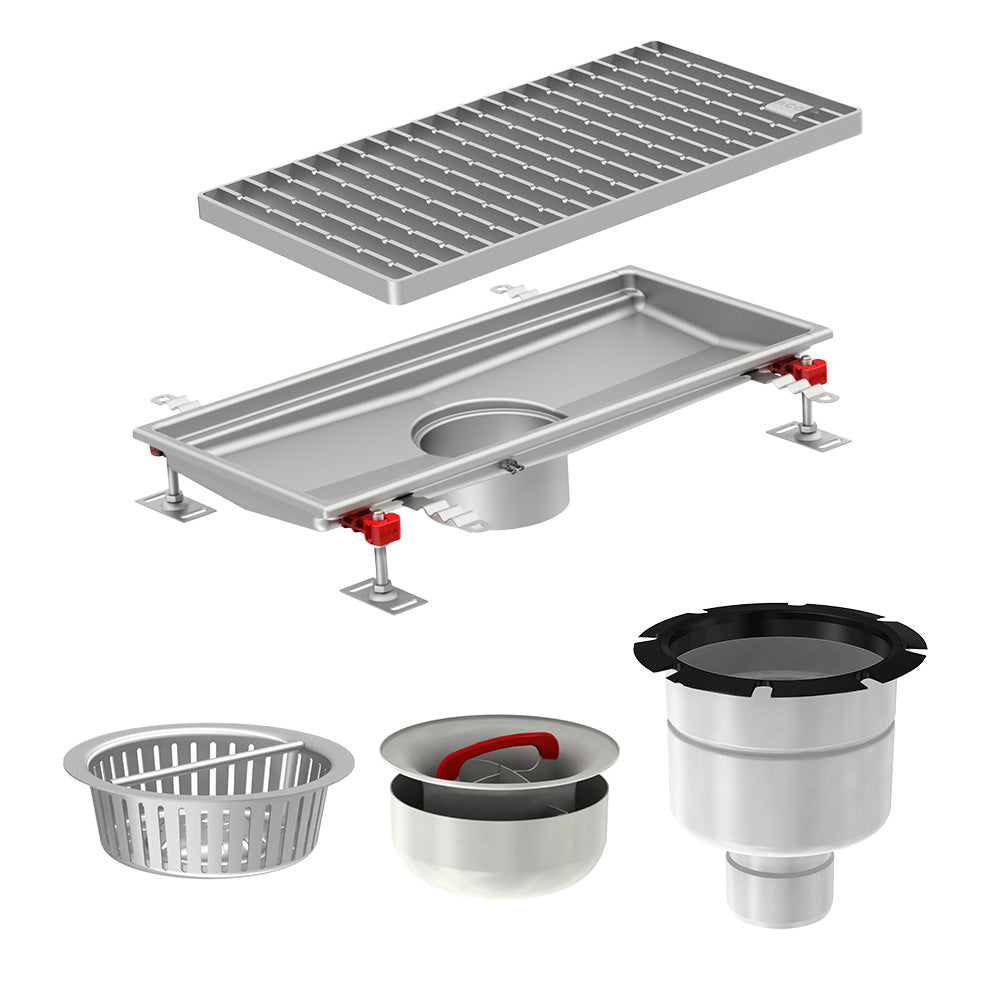

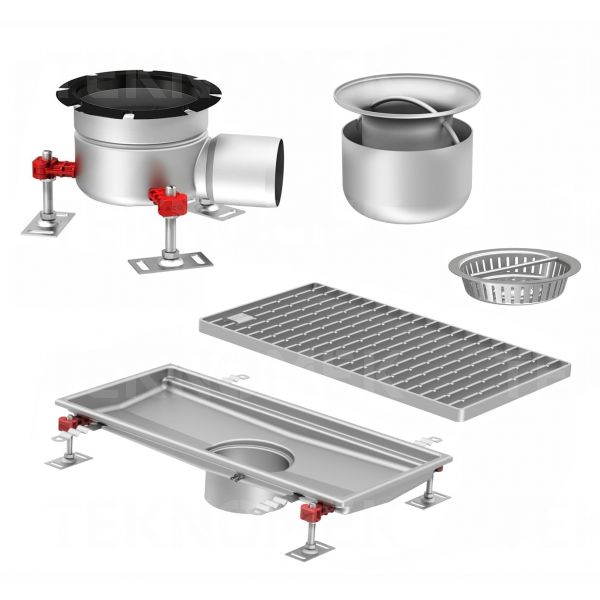

This easy to assemble kit includes the telescopic gully, ladder grating, foul air trap and silt basket. We offer these with a choice of channel lengths, flow rates and vertical or horizontal outlet to cater to your specific requirements.

Talk to us about 316L-grade stainless steel options and bulk buy discounts.
