Delfin MTL201 1/3 D ATEX 20 / 22 explosion-proof vacuum cleaner

The Delfin MTL201 1/3D ATEX vacuum cleaner is ideal for vacuuming combustible dust in medium-risk areas with zone 20 internal and zone 22 external certification. Featuring a large antistatic filter, it is ideal for non-continuous applications. Accessory kit included.
HWVC-IDVCFA22

Call us on 01603788833 for pricing information and to discuss your requirements.
Download Specsheet

Description

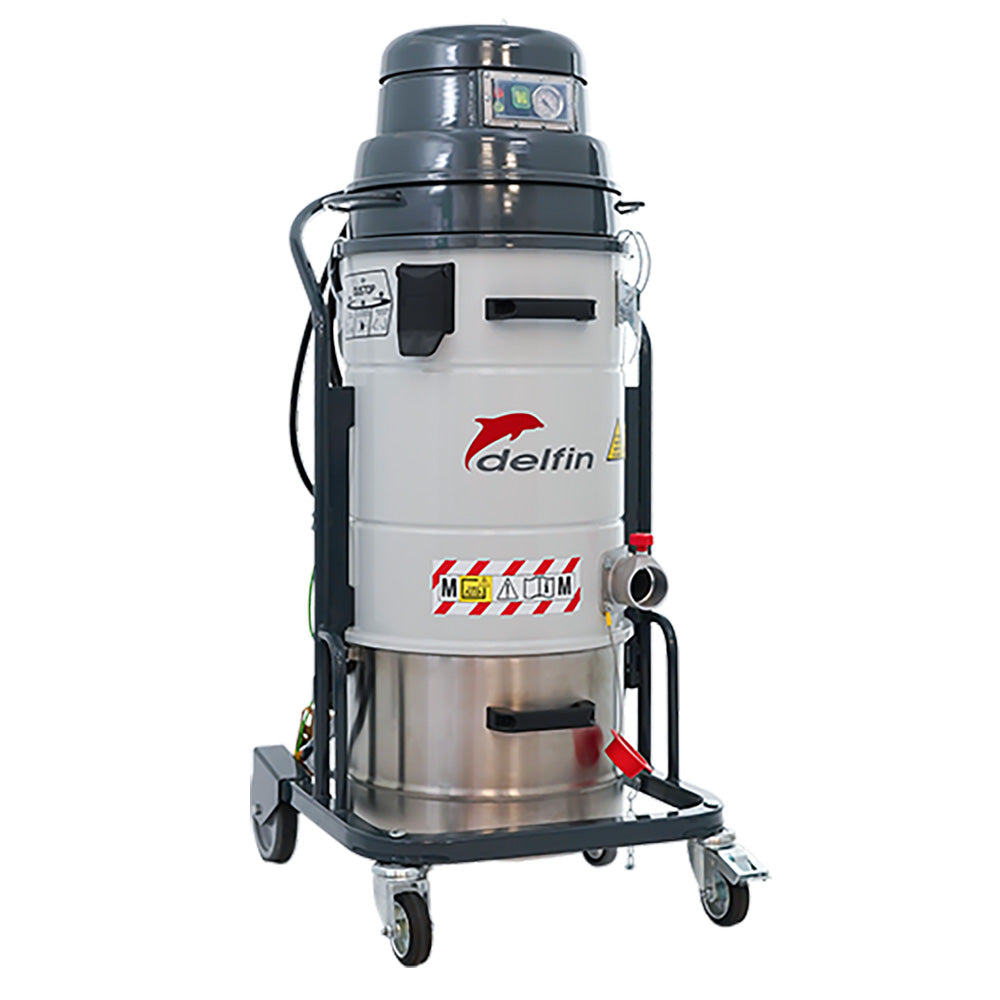

Our Delfin MTL201 1/3D ATEX industrial vacuum is ideal for cleaning combustible solids and dusts in medium explosion risk areas. Equipped with a single-phase motor, it is perfect for non-continuous applications for less than 3 hours a day.

This vacuum cleaner has a double certification for internal zone 20 (filtering chamber) and external zone 22. The ATEX certification for internal zone 20 reduces the high risk of explosion due to the accumulation inside the vacuum cleaner of the combustible material.

The unit offers the largest surface filter of its category with an antistatic class M primary filter while a vacuum gauge provides quick insights into filter health. This alerts operators to possible clogging and indicates when cleaning is required. It is recommended to clean the filter after each use and replace it regularly for best performance. The Dustop filter cleaning system ensures straightforward filter replacement, keeping maintenance hassle-free and downtime minimal.

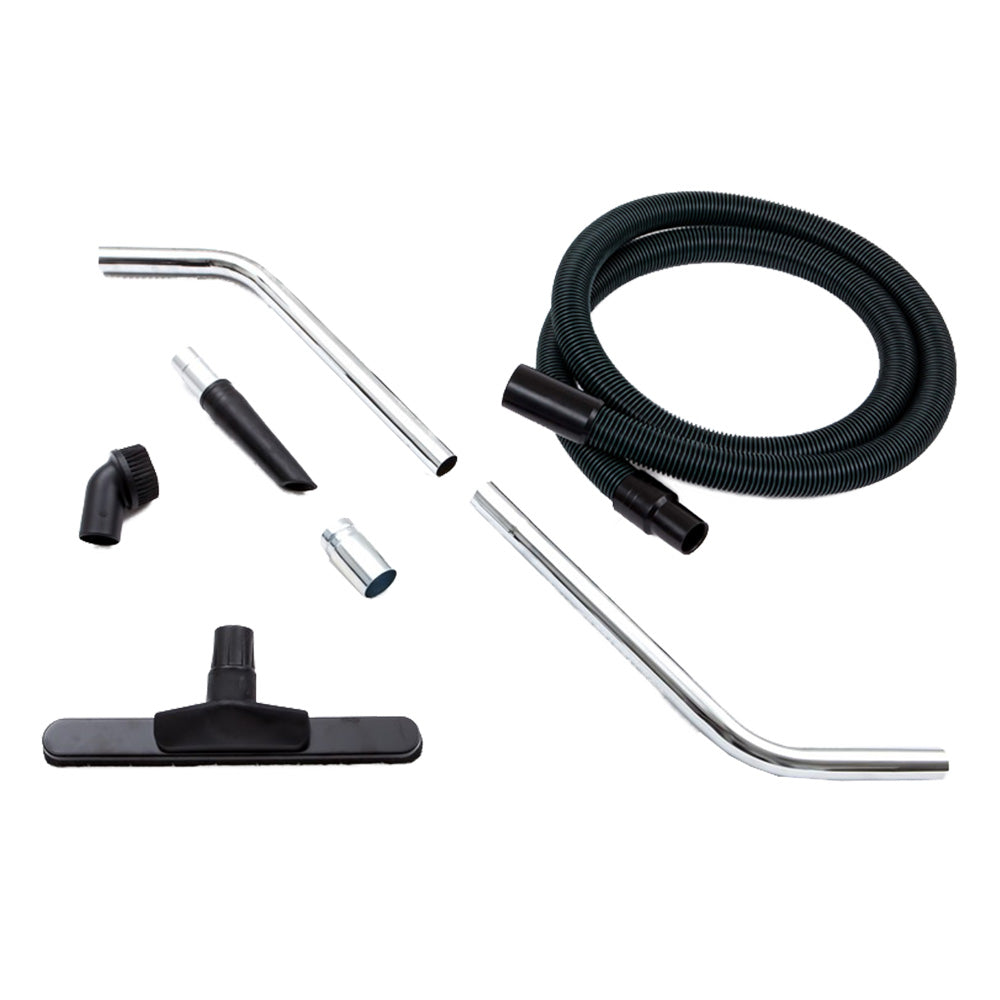

This unit is compact, mobile and constructed entirely from steel with a stainless steel 304-grade collection tank, making it both durable and easy to maintain. An accessory kit is included - talk to us about additional attachment options available to suit your specific cleaning needs.

Dimensions

  • Width: 570mm
  • Depth: 480mm
  • Height: 1150mm

Specifications

  • Stainless steel AISI304 20 litre collection tank.
  • Voltage: 230 - 50/60 1~ Power 1,15 kW.
  • Max water lift: 2500 mmH₂O.
  • Max air flow: 180 m³/h.
  • Suction inlet: 50mm.
  • Noise level (EN ISO 3744): 74 dB(A).
  • Cartridge filter.
  • Filter surface - Diameter: 30.000 - 360 cm²-mm.
  • Filter material - Efficiency: Polyester - ANT M IEC 60335-2-69.
  • Dustop cleaning system.
  • ATEX Certified Z20 internal (filtering chamber) / Z22 external.
  • UK plug to be ordered separately.
  • Weight 32kg.
