Description

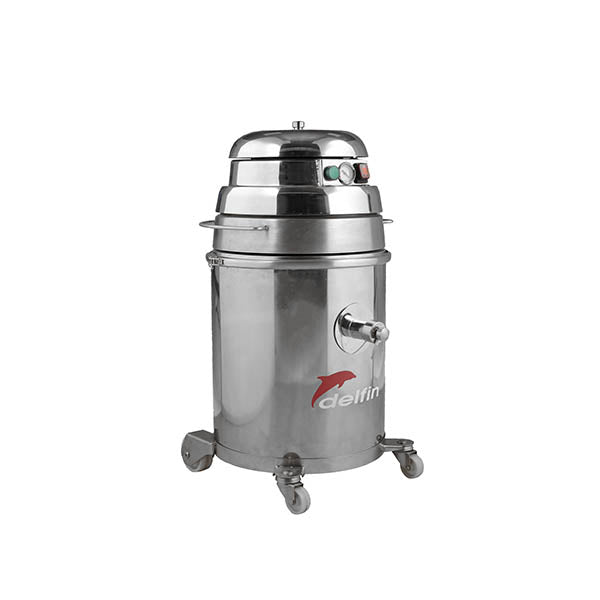

The Delfin LC1100 WD vacuum is purpose-built for cleanrooms up to ISO4. It is designed to efficiently vacuum solids, dusts and liquids, meeting the demanding requirements of the food and pharmaceutical industries. Equipped with a single-phase motor, it is ideal for non-continuous applications in controlled environments.
The unit’s multi-stage filtration system includes a HEPA filter which captures up to 99.995% of particles measuring as small as 0.18 microns. This ensures that only purified air is released back into the room to support stringent air quality standards. An optional ULPA filter is also available. A floating device stops the suction whenever the liquid in the container reaches the maximum level and prevents overflowing.
Constructed from durable stainless steel with smooth, easy-to-clean surfaces, this vacuum also features a manual filter shaker and gauge to enable easy monitoring. It is recommended to clean the filter after each use and replace it regularly for best performance. For thorough sanitisation, all vacuum components (except the motor head) are autoclavable, ensuring complete and safe disinfection. This unit is compliant with GMP standards.
Collected materials are stored in a wheeled, stainless steel container that can be easily extracted for disposal with optional, disposable bags available to enhance safe and convenient handling.
With its compact design, low noise operation, and ease of manoeuvrability, the LC1000 D is suited to confined spaces, providing efficiency and comfort. Don’t forget to order your accessory kit to meet your specific cleanroom needs.
Dimensions
- Width: 430mm
- Depth: 430mm
- Height: 730mm
Specifications
- 304-grade stainless steel construction with 316-grade stainless steel components in contact with material.
- Voltage: 230 - 50 1~ Power 1.1 kW.
- Max water lift: 2500 mmH₂O.
- Max air flow: 180 m³/h.
- Suction inlet: 40mm.
- Autoclavable (up to 120°C, motor head excluded).
- Bag filter.
- ULPA Downstream absolute filters/Inlet filter: U15.
- Filter surface - Diameter: 3000 - 360 cm²-mm.
- Filter material - Efficiency: Polyester - M PTFE IEC 60335-2-69.
- Collection tank: 40 litre capacity (solids) or 25 litre (liquids).
- UK plug to be ordered separately.
- Weight 27kg.
