Dependable 450 litre steam sterilisation for demanding laboratory workloads:

• 450 litre capacity across two shelves, with 20 available loading positions
• Available with an integral steam generator (AL0450EV-SE) or connection to a customer steam supply (AL0450DV-SE)
• Rectangular, water-jacketed pressure vessel manufactured from grade 316 stainless steel with a glass bead blast finish
• Air-ballast technology applies controlled overpressure during cooling, reducing the risk of breakage and volume loss in fluids and sealed containers
• 20-program touchscreen with load-sensed process timer, timed automatic start, batch-number input and individual operator PIN codes
• Internal data archiving stores up to 20,000 cycles, supporting full process traceability
• Easy-glide vertical sliding door, floating seal and accessible panels for straightforward operation and servicing

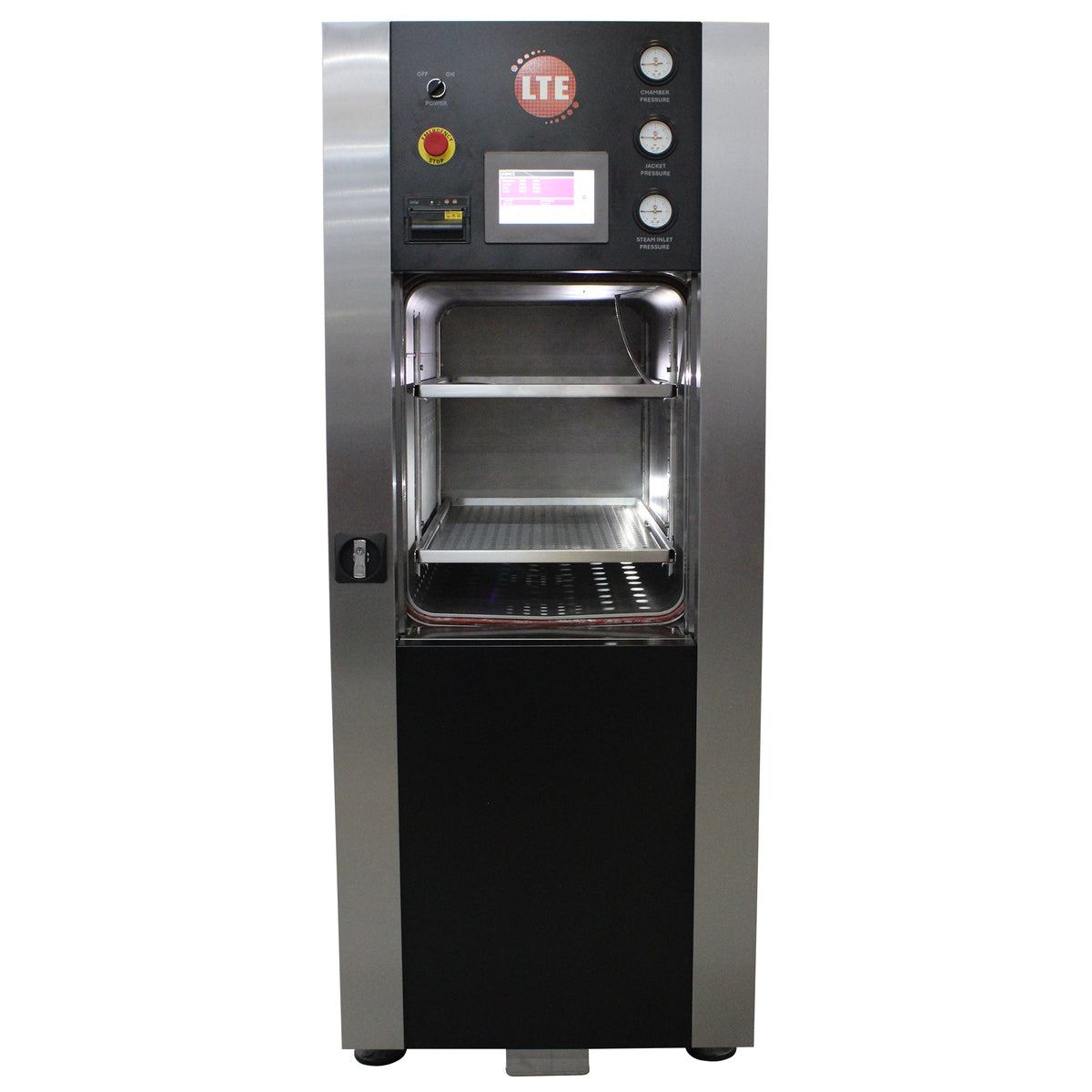

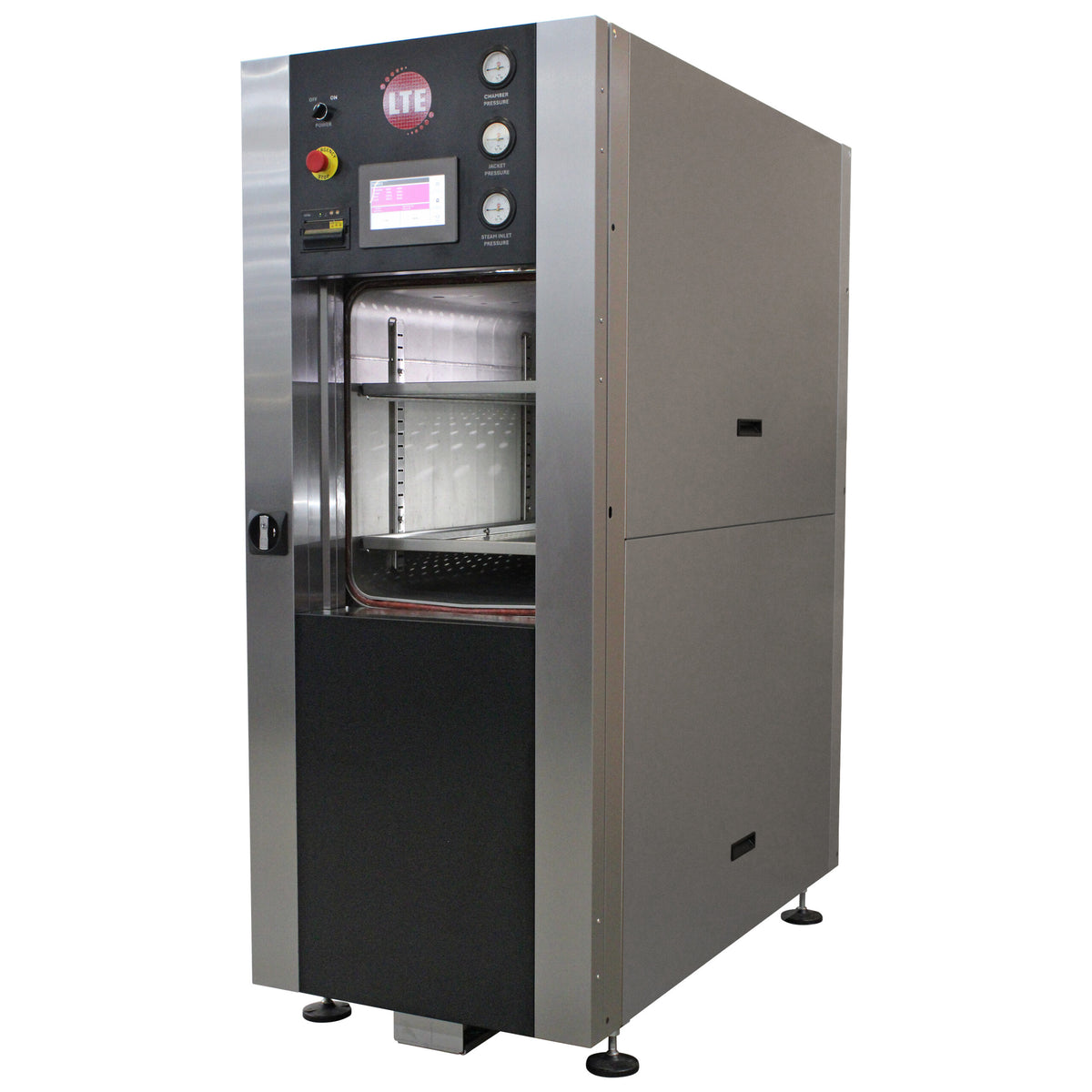

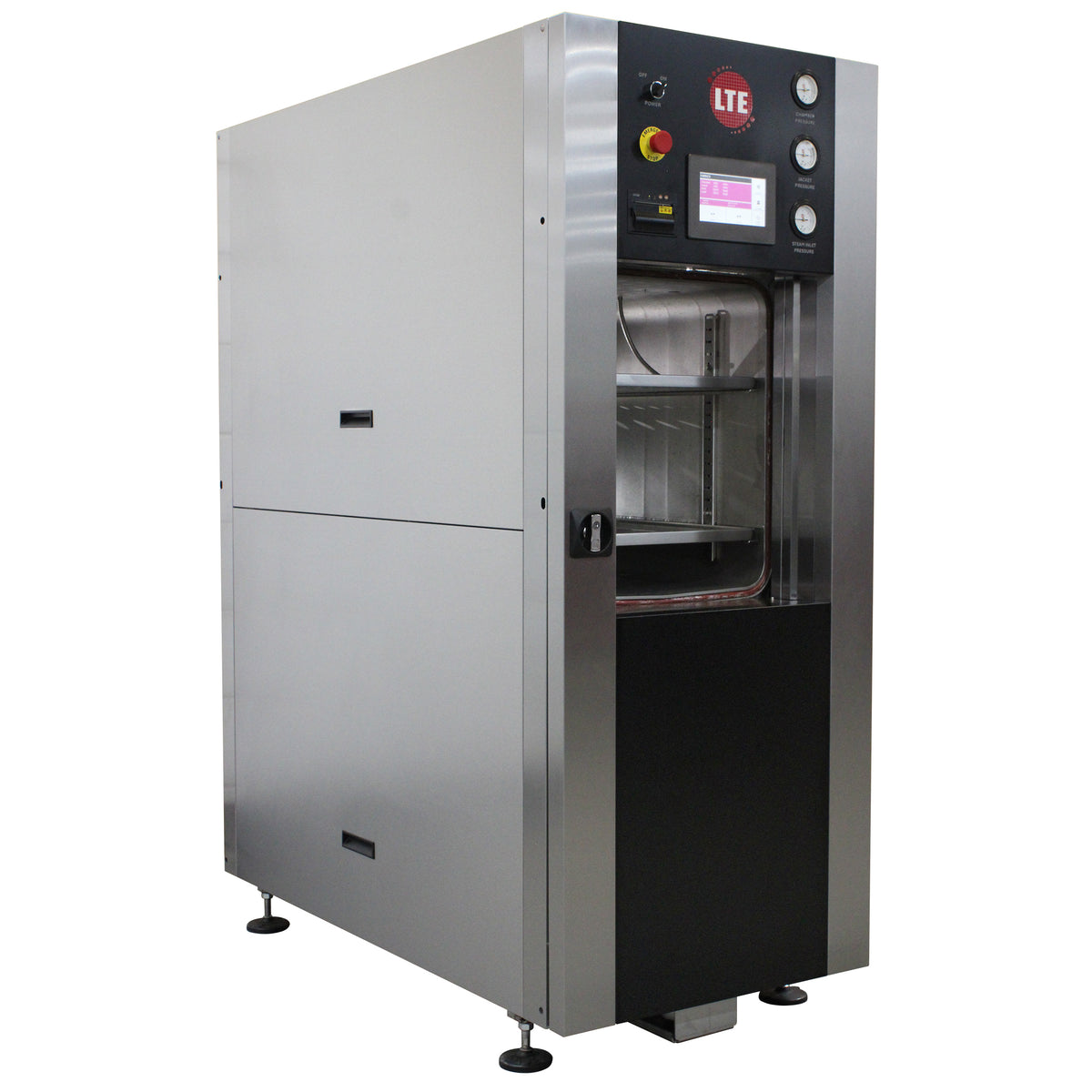

Our Labclave-L front loading laboratory autoclaves provide dependable, high-performance steam sterilisation for laboratory glassware, media, fluids and suitable discard loads, with a 450 litre capacity. Two configurations are available: the AL0450EV-SE has an integral steam generator for sites without central steam, while the AL0450DV-SE connects to a suitable customer steam supply, allowing laboratories to select the model that best matches their existing services.

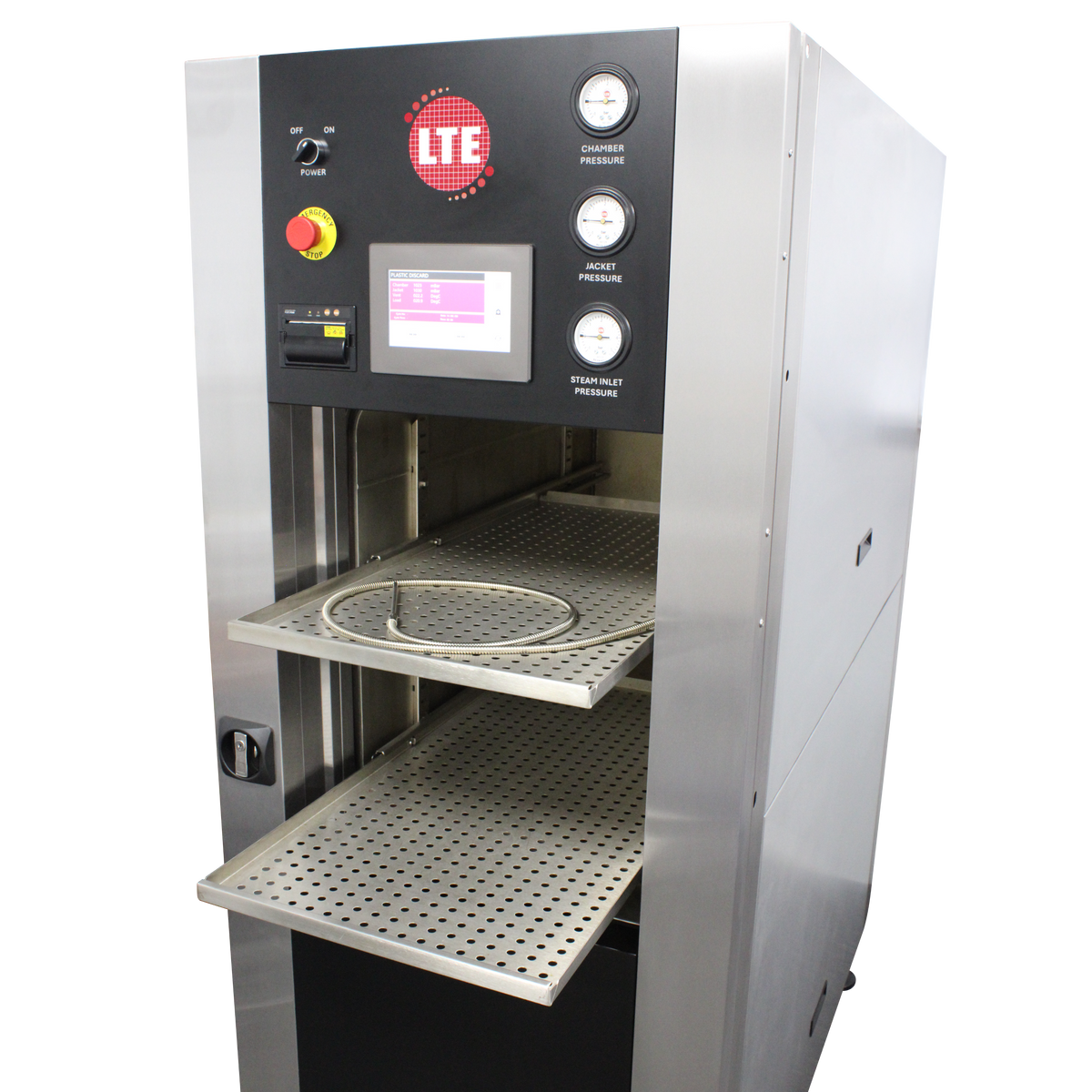

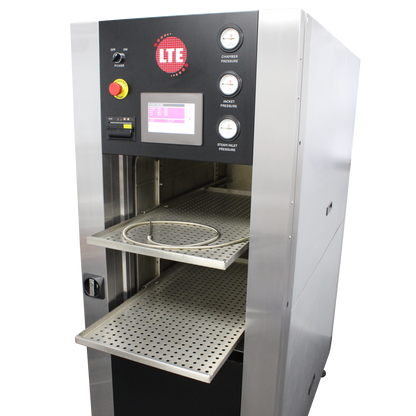

The rectangular, water-jacketed pressure vessel is manufactured from grade 316 stainless steel with a glass bead blast finish, providing corrosion resistance and dependable long-term performance. Two shelves and 20 available positions accommodate different laboratory loads, while a temperature range of 105°C to 140°C supports varied processing requirements.

Air-ballast technology applies controlled overpressure during cooling, allowing fluids and sealed containers to cool faster while reducing the risk of breakage and volume loss. The water-jacketed chamber improves cooling efficiency, while water conservation and exhaust condensate systems reduce consumption and control discharge temperatures.

A 20-program touchscreen, load-sensed process timer and internal data archiving simplify cycle selection, with timed automatic start, batch-number input and individual operator PIN codes for full traceability. The armoured load probe provides durable, accurate temperature measurement, and the load-sensed process timer ensures sterilisation only begins once the load has reached the required temperature.

An easy-glide vertical sliding door and floating seal support straightforward, secure operation, while accessible panels simplify servicing and maintenance. The integral silent air compressor, self-contained construction and small footprint simplify installation and everyday use. For other sizes and optional accessories, or to arrange the required site visit ahead of purchase, please contact our sales team.
