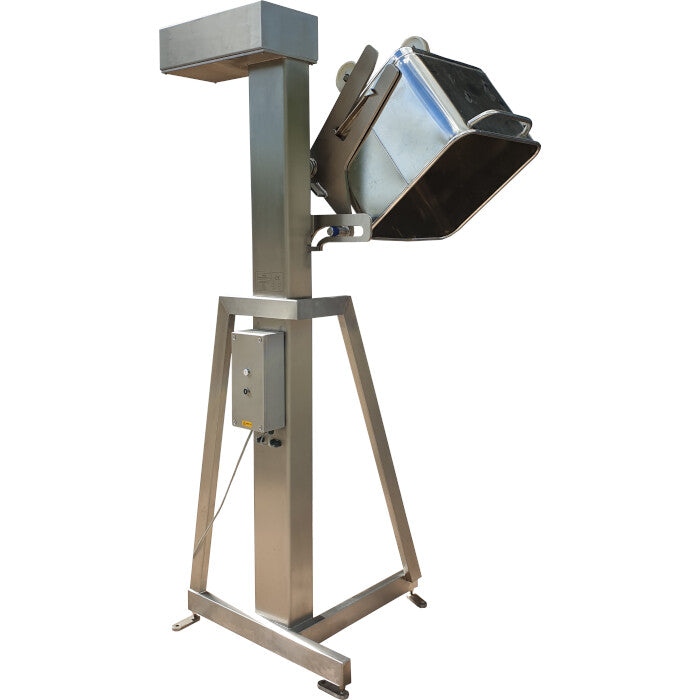

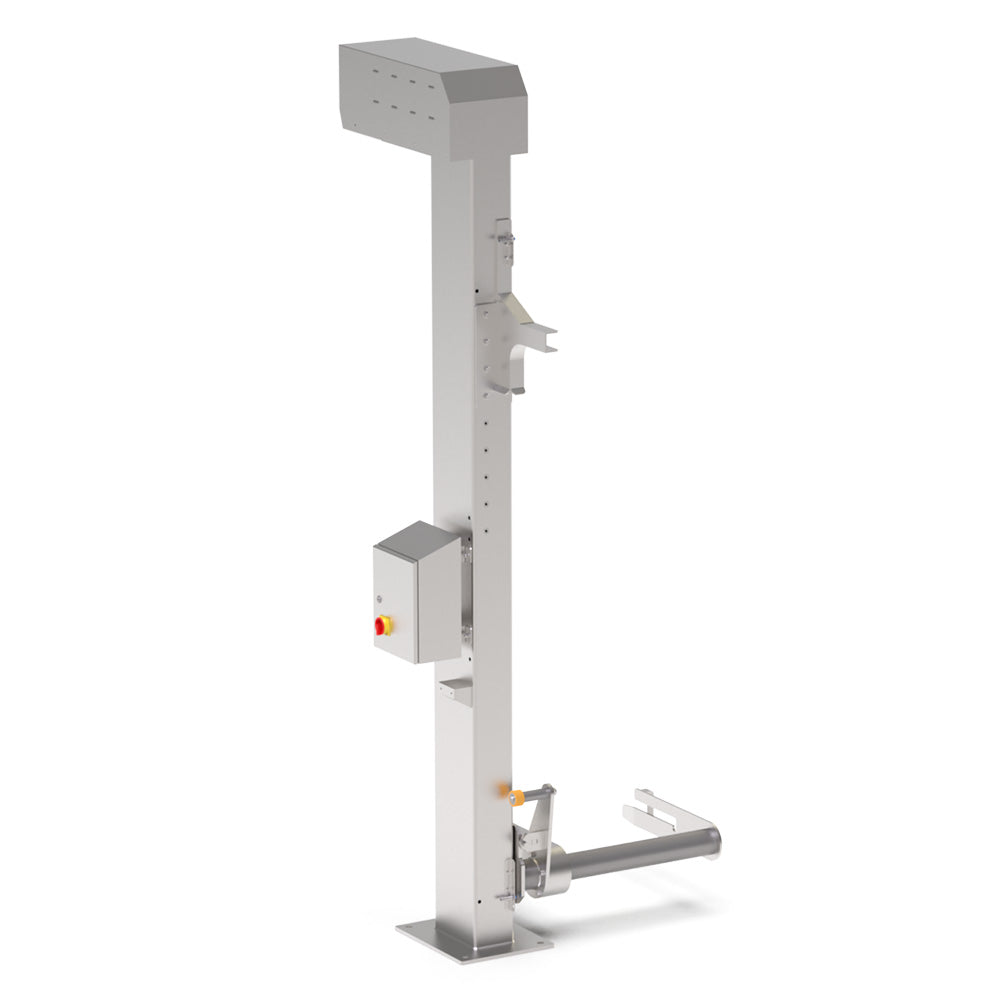

Teknomek's Motor Driven Pillar Euro Bin Tipper lifts and tips a stainless 200 Litre Euro bin to a height of 1800mm with a Safe Working Load of 300 Kgs. It is constructed from Grade 304 stainless steel and requires bolting to the floor.
The lifting is powered by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column. Includes with a safety latch which engages automatically in the extremely unlikely event of a lift chain failure. Fitted with an IP65 Stainless Steel Control Panel mounted on the main column at a position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site.
Operates on a ‘hold to run’ principle such that the ‘Up’ or ‘Down’ pushbuttons must be held for the machine to operate. When released the machine will stop. The control panel has the facility for a ‘Call to Run’ signal to be connected if required.
We offer many customised options specific to what is being handled, please call us on 01603 788 833.
- Limit Switches: Telemecanique
- Motor Detail: .75kw, 415v, 3 Phase, 50 Cycle C/W Brake
- Gearbox Detail: Sew Eurodrive
- Load/Tension Chain: ¾” Simplex
- Tensile Strength: 3000 Kgs
- Lift Speed: 6.4 Meters/Minute
