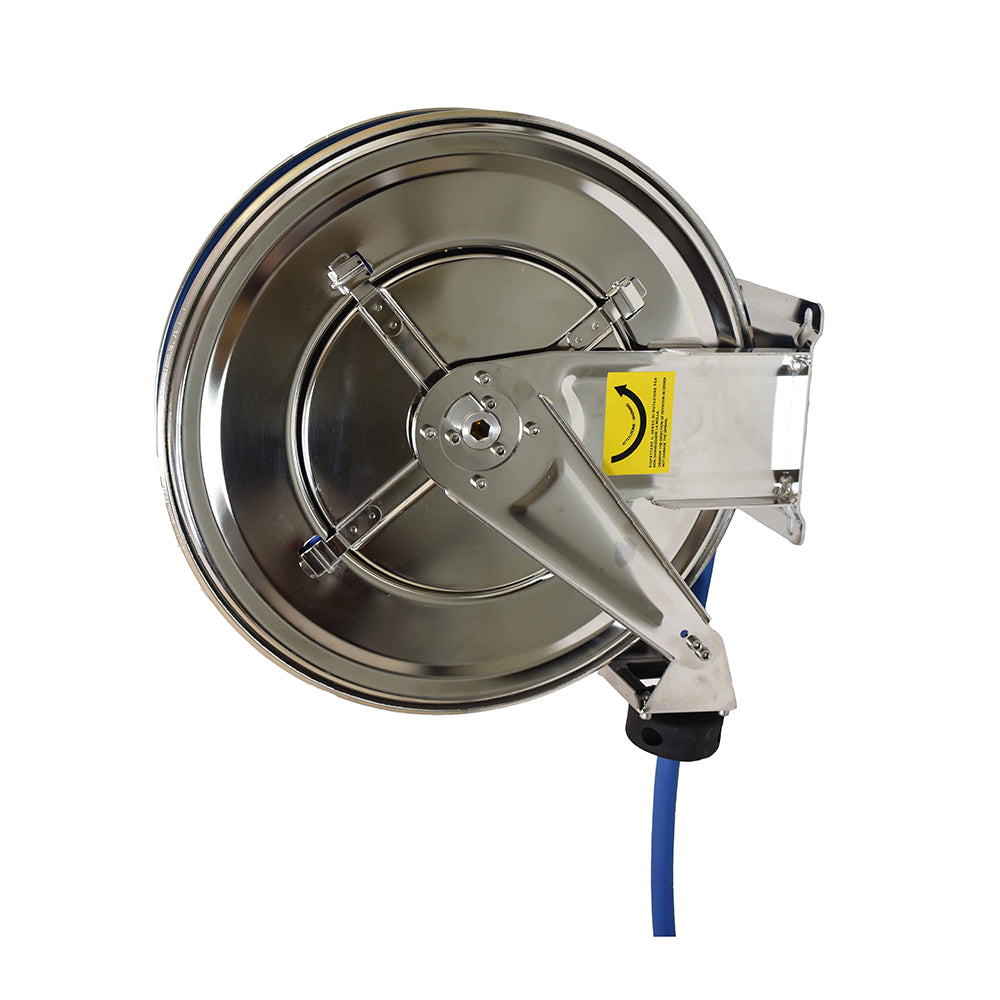

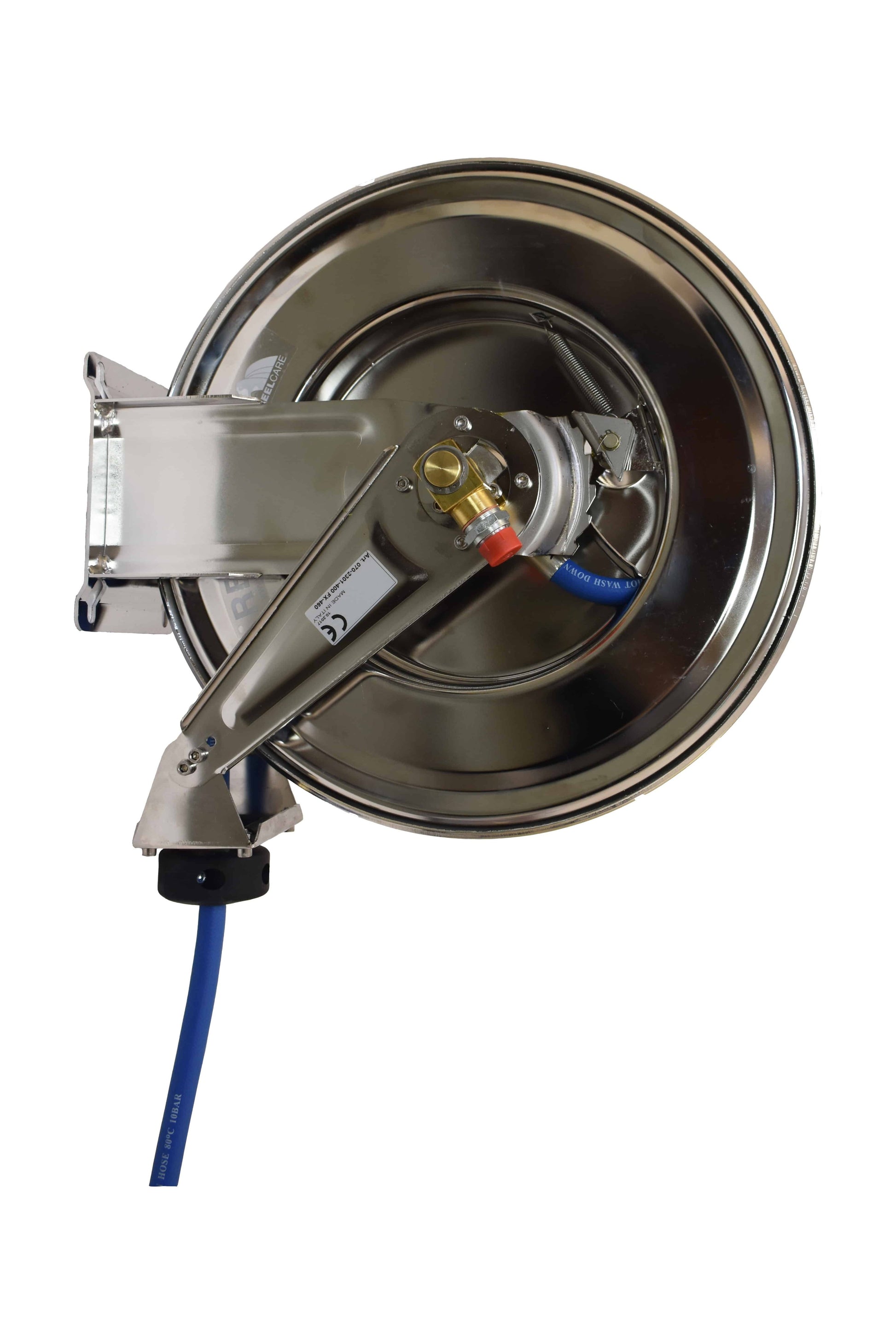

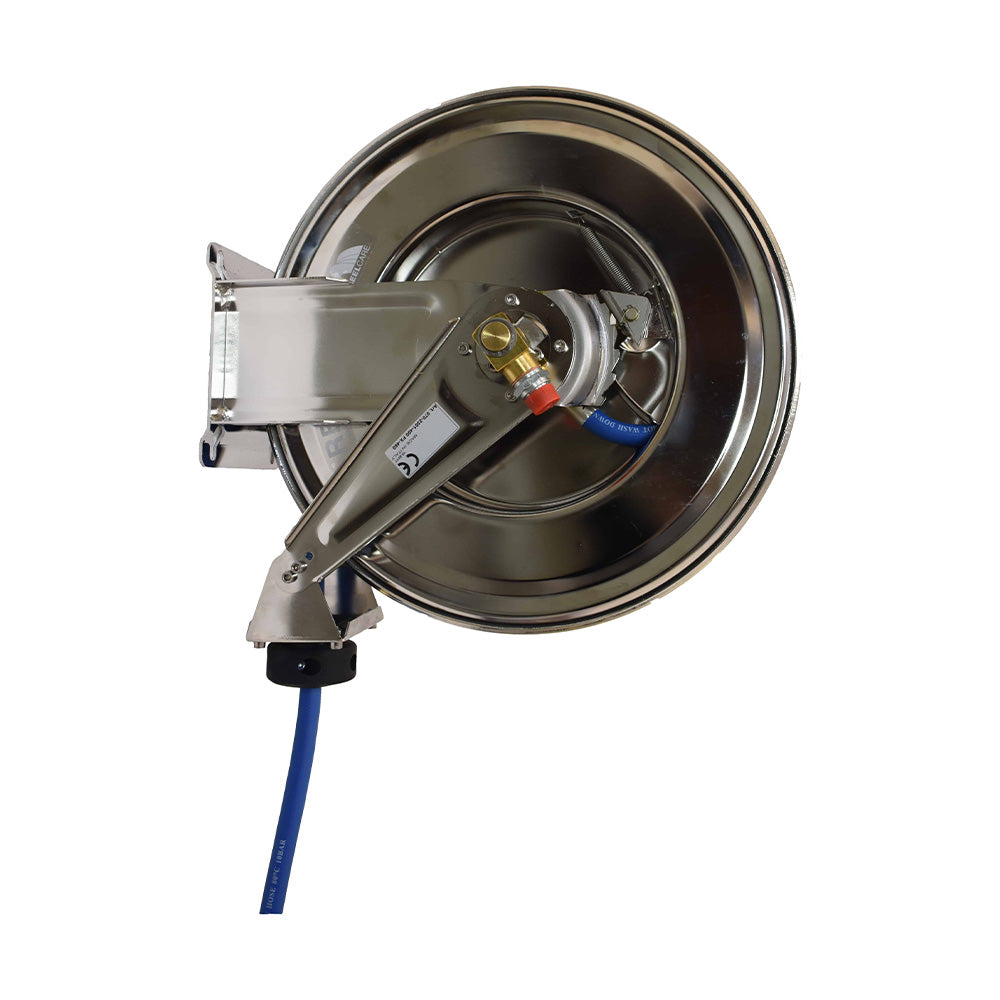

Stainless steel spring driven hose reel

Stainless steel spring driven hose reel is ideal for washdown in hygienic industries. It is manufactured in 304-grade stainless steel and it comes with either a brass or stainless steel swivel assembly. A very robust hose reel built to last.
HWWD-SDHR15B

Price:
Sale price£615.00
Sale price£738.00 (Inc. VAT)
*For any orders outside the UK please call us on 01603 788833
Download Specsheet

Description

Our open, easy clean, heavy duty 304-grade stainless steel constructed spring driven hose reel is fitted with 15 metres of hose ideal for cleaning down with hot water up to 80°C.

This spring driven reel is self-retracting with an automated latch system. This automatically latches and holds the reel in place at any length ( a 4-way nylon roller guides helps to reduce hose wear).

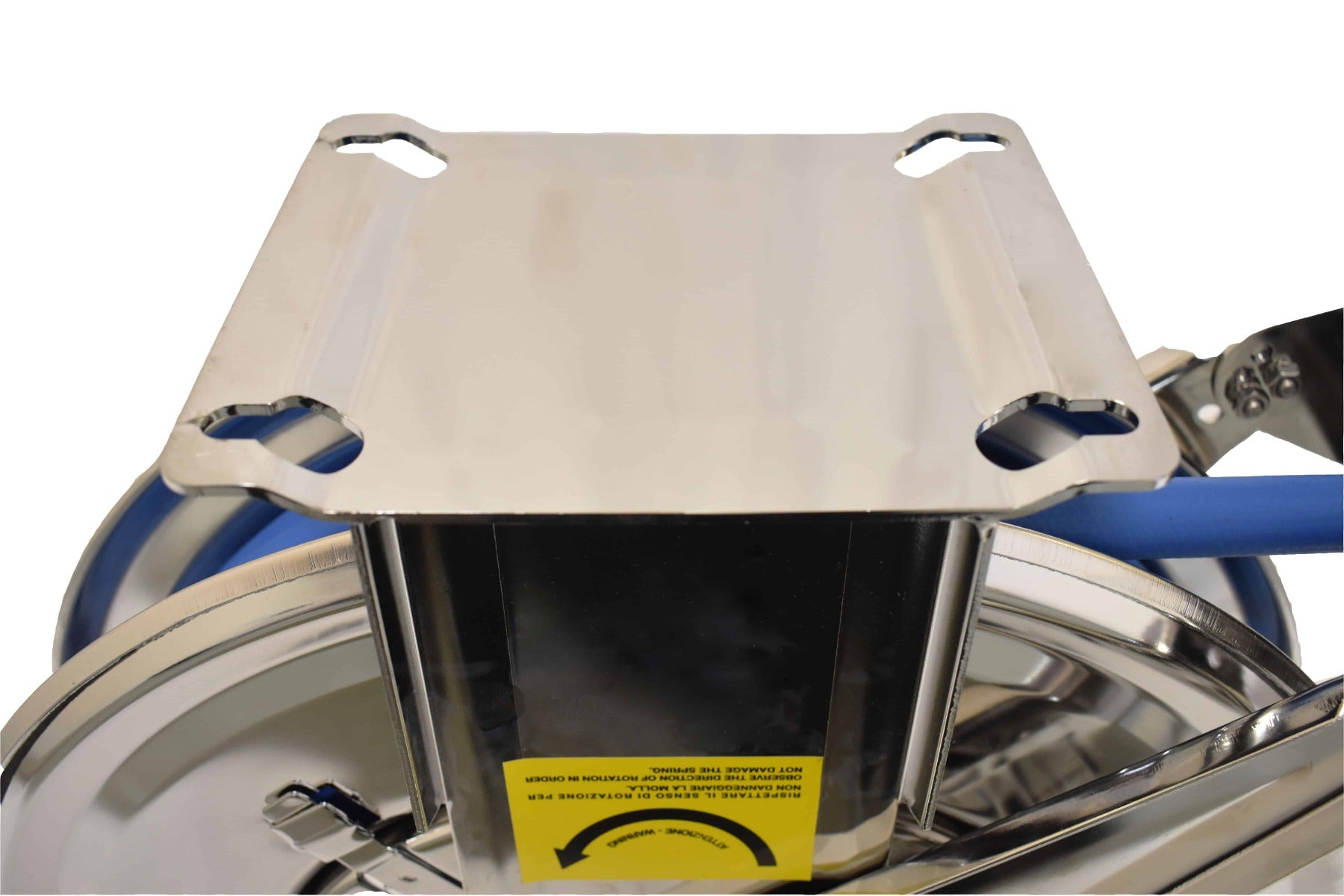

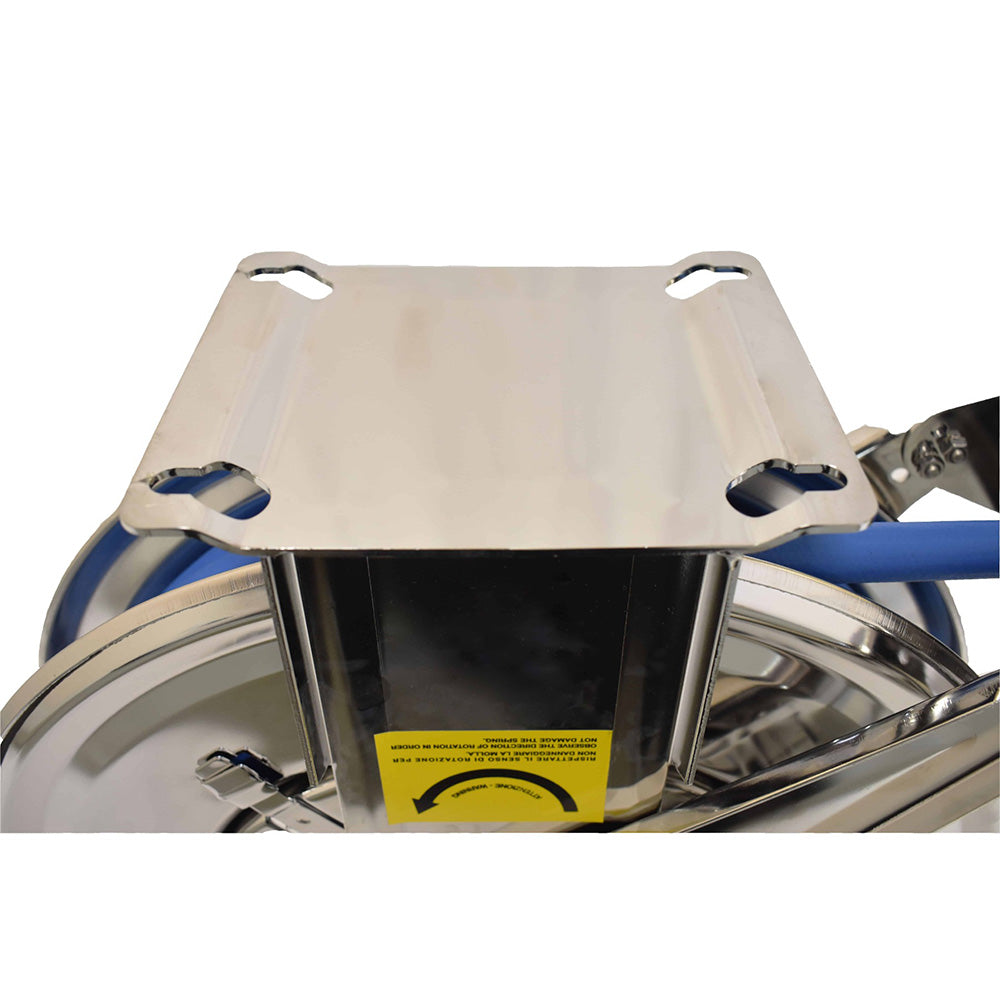

Moreover, a pivoting wall bracket can be easily bolted on which allows for easy manoeuvrability (Sold separately).

The hose is supplied with a fixed BSP taper male hose tail. Available in either stainless steel or brass.

Finally, if you want to complete your hose kit, have a look at our connecting hose which comes fitted with a fixed taper male on one end and a swivel female fitting on the other.

Dimensions

  • Width: 585mm
  • Depth: 455mm
  • Height: 255mm

Hose diameter: 12mm
Hose length: 15 metres

Specifications

  • Heavy duty 304-grade stainless steel.
  • Available with brass or stainless steel fittings.
  • Wall or ceiling mounted.
  • Spring-driven.
  • Complete with 15m x 12mm blue hose (Not food grade).
  • Maximum 10 bar pressure.
  • Working temperature of -25°C to 80°C.
  • Weight approx. 22kg.

You may also need

Water/Air gun
Water/Air gun
Sale price£165.00  (ex. VAT)

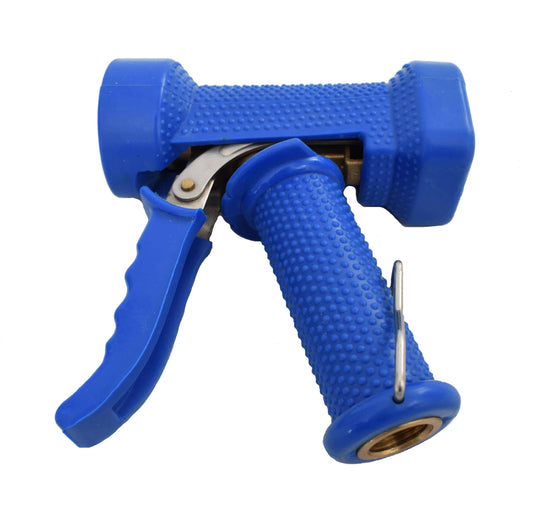

Heavy duty spray gun
