Description

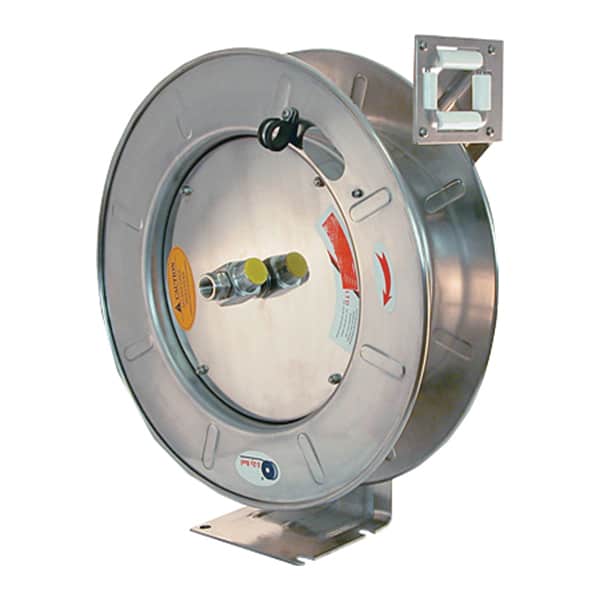

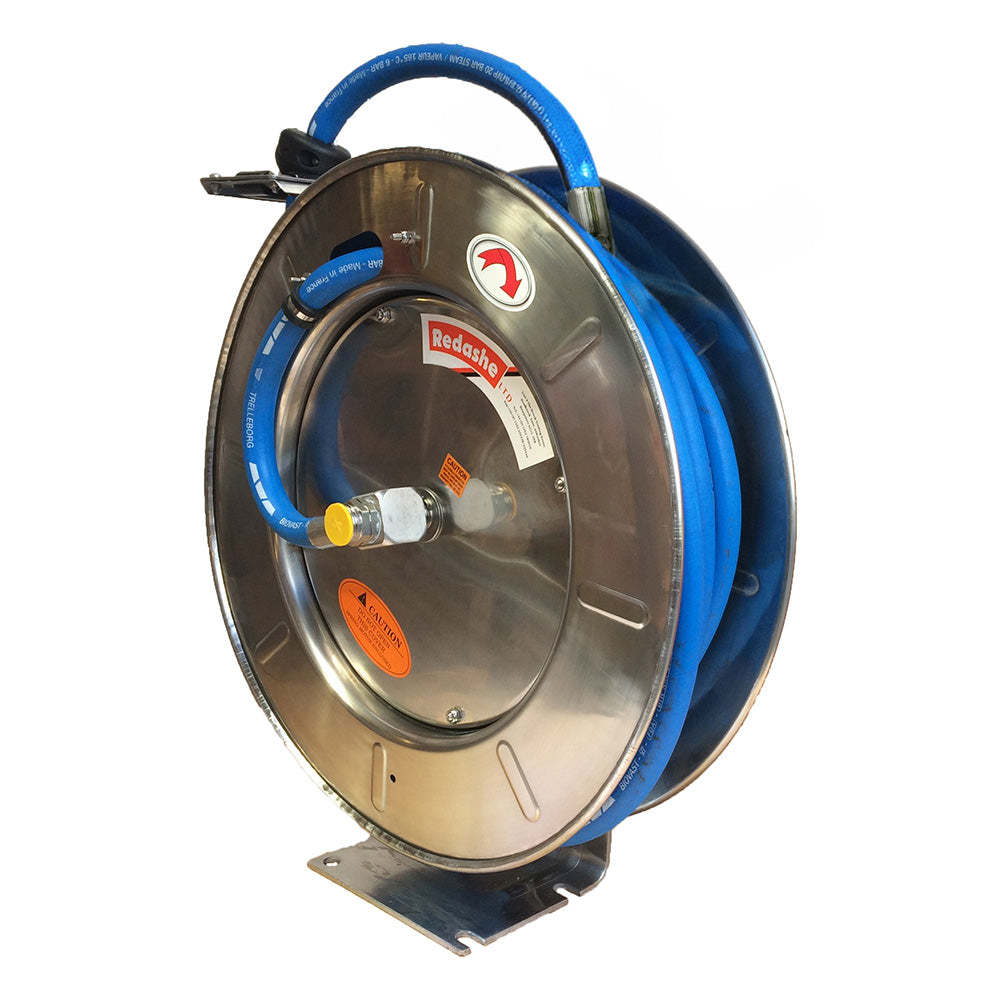

Our spring rewind hose reel kit is an open, easy clean, heavy duty 304-grade stainless steel constructed hose reel ideal for a wide variety of industries where the use of long hoses in hygienic conditions is needed. This hose reel is self-retracting with an automated latch system. This automatically latches and holds the reel in place at any length.
An optional wall bracket can be easily bolted on which allows the unit to swing so it is always pointing towards the operator making it easier to use, reduce wear on the hose and guides and increase the working area.
The hose reel comes completed with a hose that has a smooth easy clean cover which is resistant to abrasion, animal and vegetable fats and operated up to a maximum bar pressure of 20 bar.
The hose is supplied with a fixed BSP taper male hose tail.
Featuring 4 screw holes it can be allocated either on the wall or on the floor. To complete your hose kit, order the connecting hose which comes fitted with a fixed taper male one end and a swivel female fitting on the other
PLEASE NOTE: The hose reel does not come with a spray gun or wall bracket. These are optional extras and available to purchase separately.
Dimensions
Hose Reel:
- Width: 220mm
- Depth: 530mm
- Height: 550mm
Hose:
- Length: 15 or 20m
- Diameter: 12.5mm
Specifications
- Heavy duty 304-grade stainless steel.
- Floor or wall mounted.
- Fully automatic spring rewind with automated latch system.
- Maximum temperature 100°C.
- Food grade FDA approved.
- Weight: 24kg (15m) 32.2kg (20m).
- Reel: 20 bar working pressure.
- Hose: 14 bar working pressure (42 bar burst pressure).
