New

Automatic tote bin washer

Our automatic tote bin washer is designed for the food industry, efficiently cleaning 200-300 litre bins using non-foaming detergent and recycled rinse water. Made from 304-grade stainless steel, it reduces manual handling, enhancing staff safety and minimising contamination risks. Capable of washing up to 30 bins per hour, it ensures thorough cleaning while conserving water and energy. Installation is included, making this washer an ideal solution for maintaining strict hygiene standards in food production environments.
SHET-WASHER

Call us on 01603788833 for pricing information and to discuss your requirements.
Download Specsheet

Description

Our automatic tote bin washer is an advanced cleaning solution tailored for the food industry while ensuring optimal hygiene and operational efficiency. Constructed from 304-grade stainless steel, it is designed to clean 200-300 litre bins using non-foaming detergent and recycled rinse water with the ability to clean up to 30 bins per hour. This robust unit significantly reduces manual handling, enhancing safety for staff while minimising contamination risks.

The washer features an easy-to-use, programmable touch screen control that can quickly set up and adjust the washing process. Select from four programmable wash cycles ranging from a 2 - 10 minute duration. Once programmed, the washer is operated with a simple push-button, streamlining the process for efficient use. This flexibility allows for custom cleaning based on the level of soiling, ensuring optimal results for each batch of bins.

In addition to its efficient cleaning capabilities, the washer is equipped with a 350-litre recycled water tank. This system reuses rinse water, reducing water consumption and promoting sustainability. The recycled water is thoroughly filtered to ensure that it is clean and effective for the next cycle, further enhancing water and energy efficiency.

Designed with flexibility in mind, the unit can be installed to suit various facility layouts. Installation is included, making the setup hassle-free and ensuring the unit is ready to perform once integrated into your production line. (Provided necessary water, drainage, and electrical connections are pre-installed.) This automatic tote bin washer is an ideal choice for food production facilities that prioritise both hygiene and operational safety, helping to reduce operational costs while maintaining stringent cleanliness standards.

Dimensions

  • Width: 1692mm
  • Depth: 3480mm
  • Height: 2296mm

Specifications

  • 304-grade stainless steel.
  • Power wash pump - 15 KW.
  • Max operating pressure 7 bar.
  • Electrical connection: 400V/50Hz, 3-phase.
  • Fuse: 50-80 amps, depending on the model.
  • CEE plug: 63 A 5P , or CEE 125 A 5P (depending on the model).
  • Floor drain: Required for disposing of approximately 140 litres per minute during operation.
  • Hot water supply: Minimum of 60°C, with a flow rate of 46 litres per minute.
  • Required heating: electric, hot water generator or steam injection.

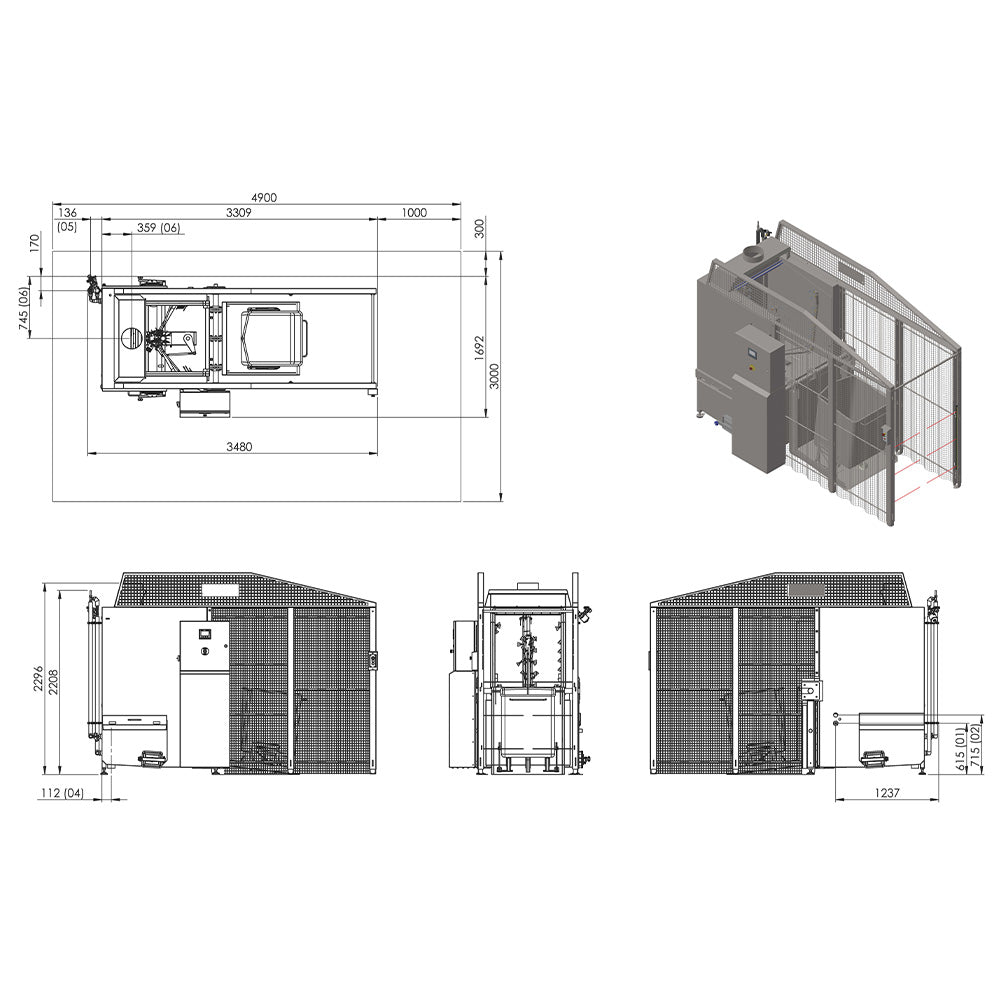

Product drawing
