Dependable ducted fume containment engineered to fit tight lab spaces without compromising on protection:

• Specially profiled curved inlet smooths airflow into the chamber, reducing turbulence around the sash opening and helping maintain operator protection even at lower face velocities
• Compact footprint and reduced overall height suit low ceilings, tight layouts and space-constrained laboratories
• Available in four widths from 1200mm to 2000mm, with a 6mm toughened glass sliding sash for clear visibility of the working area
• Fire-resistant twin-skin shell, cast epoxy worktop and Trespa® TopLab® BASE liners and baffles for durable, chemical-resistant construction
• Meets BS EN 14175 containment requirements
• AFA500 control system provides audible and visual warnings for airflow failure and excessive sash height
• Long-life LED flat panel lighting, two double sockets and full-access removable service panels support safe, practical operation and maintenance

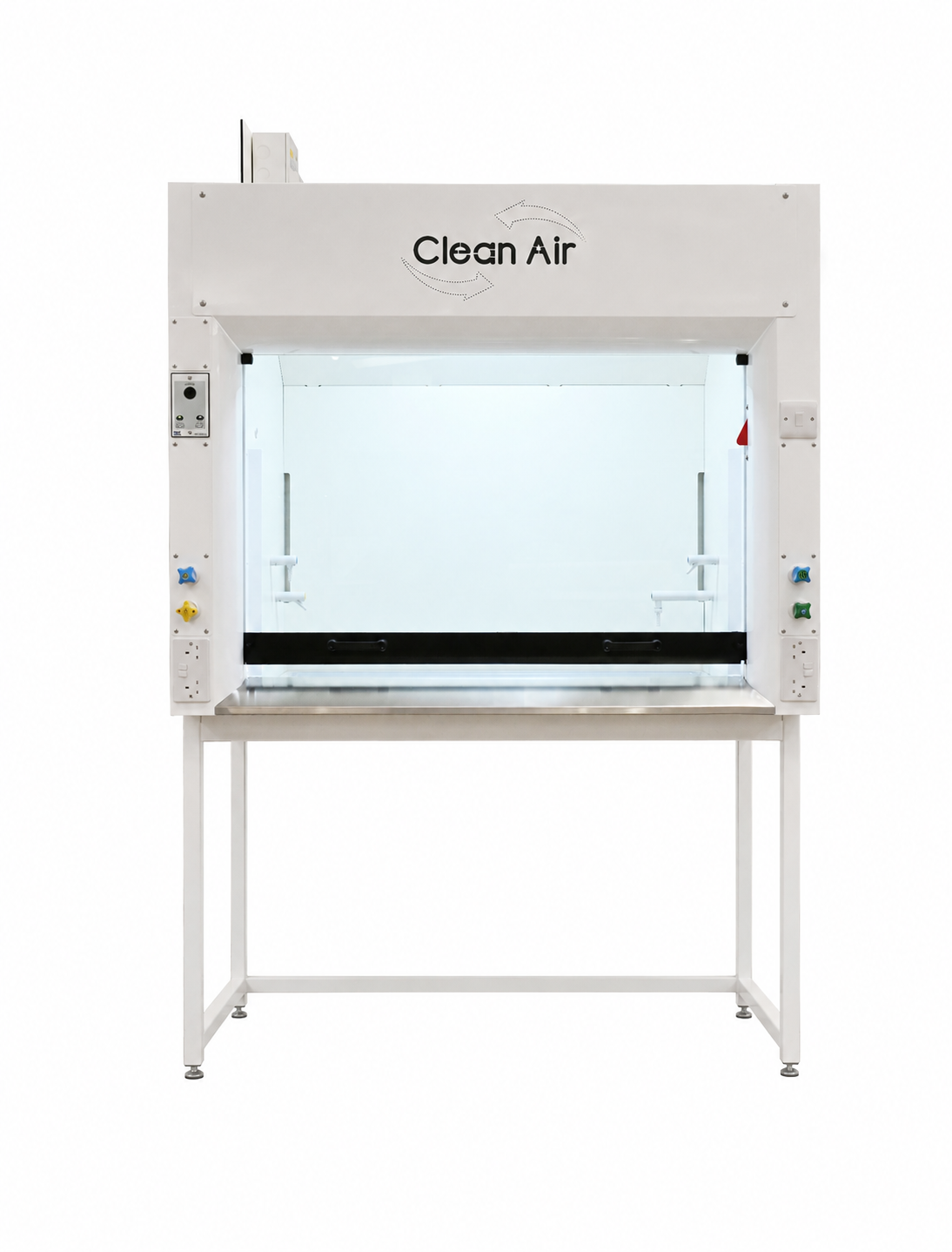

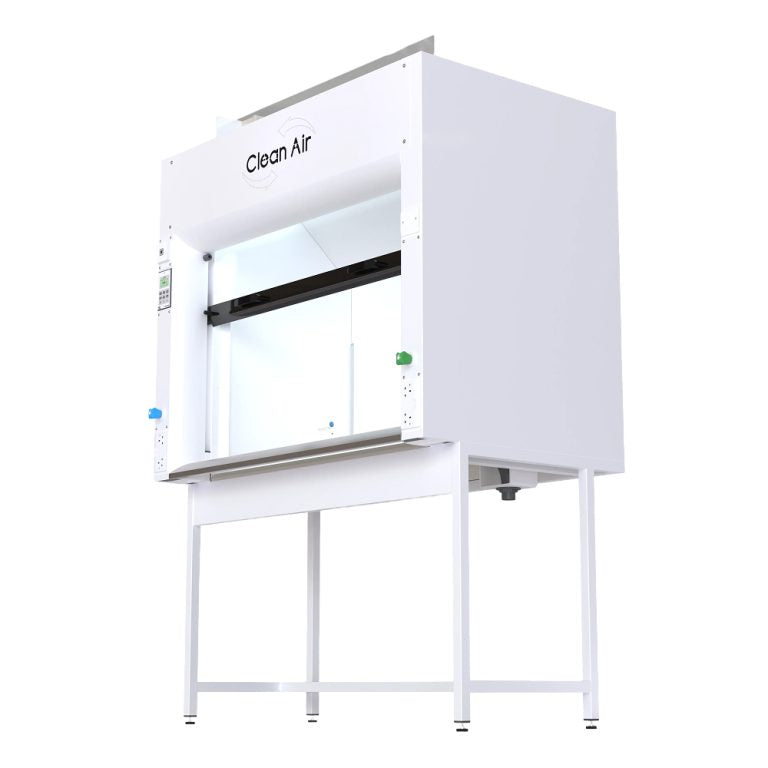

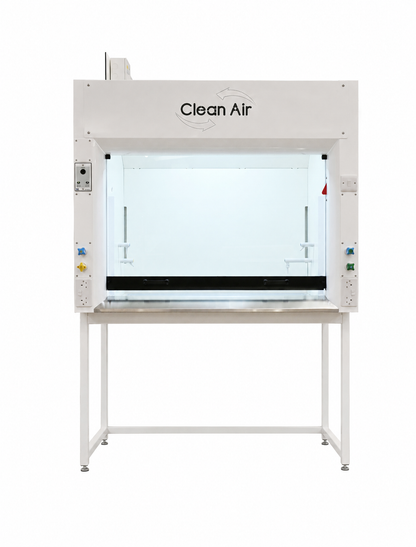

Our Clean Air Discovery ducted fume cupboard provides dependable containment for laboratory work involving hazardous fumes, vapours and airborne contaminants. Designed for teaching, commercial and research laboratories, its compact footprint and reduced overall height make it particularly suitable for space-constrained labs, low ceilings and existing layouts where installation space is limited. The unit must be connected to a suitable fume extract system to safely remove contaminated air from the workspace.

The specially profiled curved inlet guides air smoothly into the chamber, reducing turbulence around the sash opening and helping to maintain operator protection even at lower face velocities. A 6mm toughened glass sliding sash, with a 400 or 500mm sash stop, gives clear visibility of the working area, while the fire-resistant twin-skin shell, cast epoxy worktop and Trespa® TopLab® BASE liners and baffles provide a durable, chemical-resistant build that meets BS EN 14175 containment requirements.

The AFA500 control system gives audible and visual warnings for airflow failure and excessive sash height, operated via a flush membrane control panel for straightforward day-to-day use. Long-life LED flat panel lighting and two double sockets support practical bench work, while full-access removable service panels keep maintenance simple.

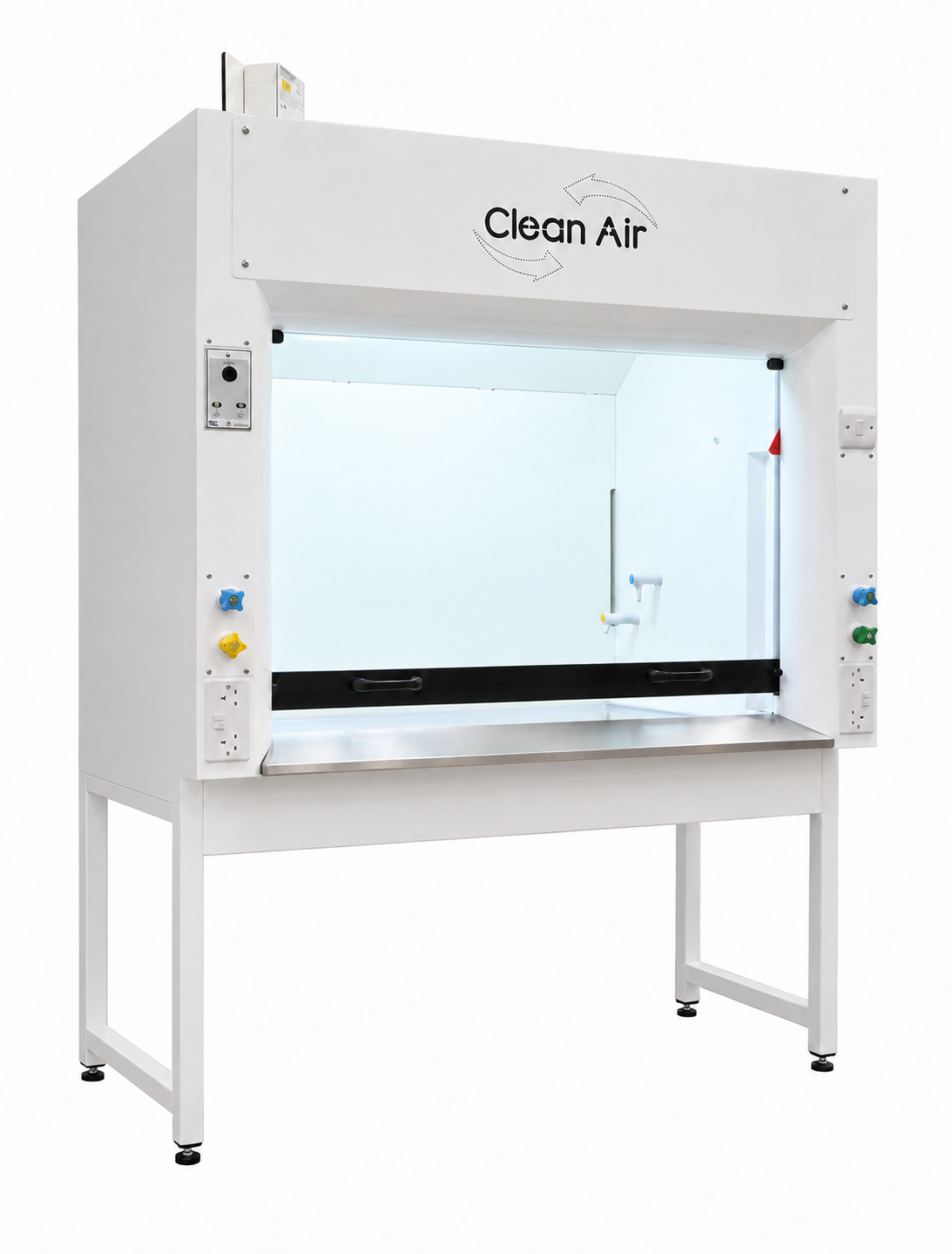

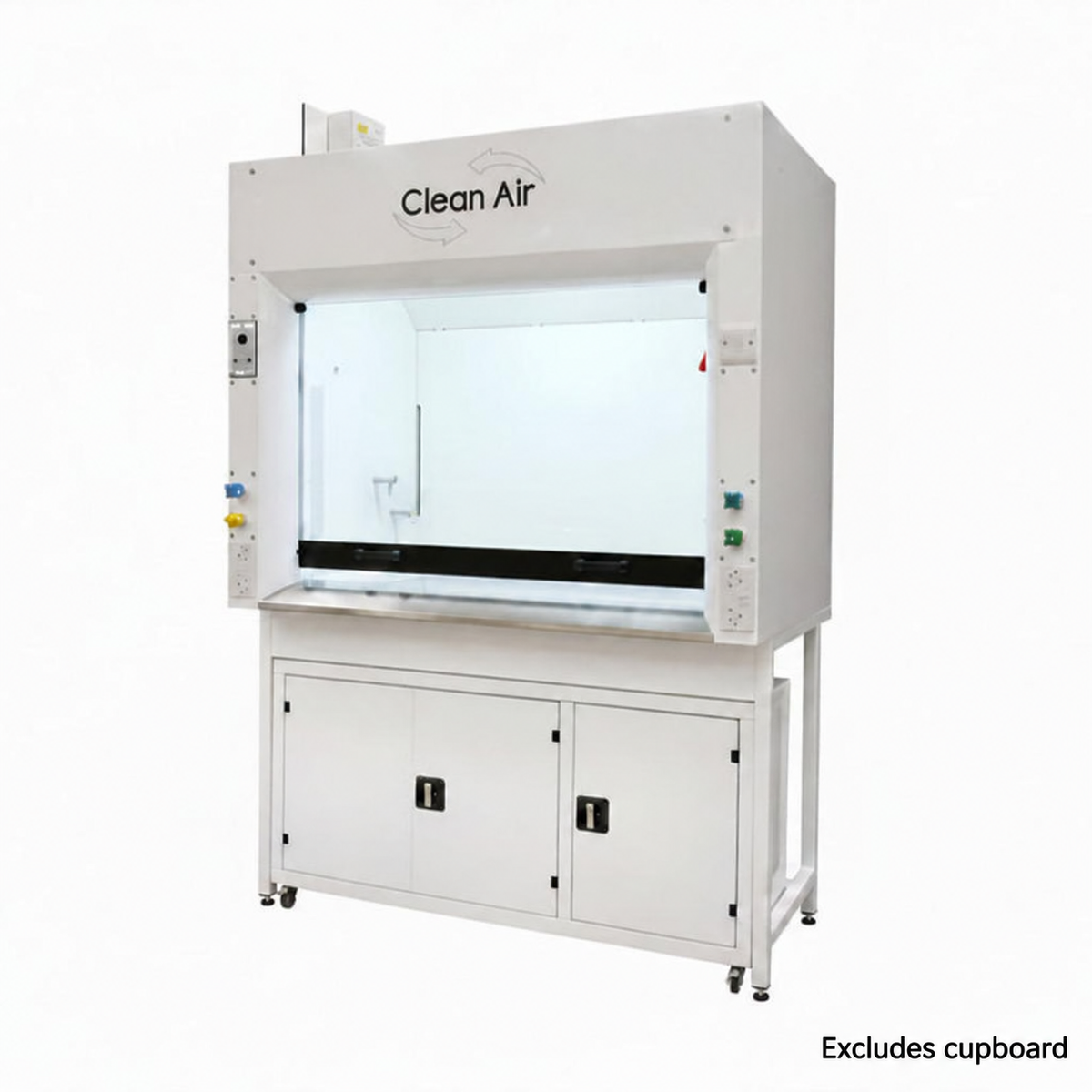

The unit includes a support frame stand as standard, with the option to add an under cupboard for additional storage. For buyers who need a recirculating rather than ducted solution, our Monmouth Circulaire fume cupboard may be a better fit, see our full laboratory fume cupboard range for other options.

Please contact our sales team regarding any additions, delivery, installation and servicing.
