Our products are long lasting and easy to clean through their intelligent design.

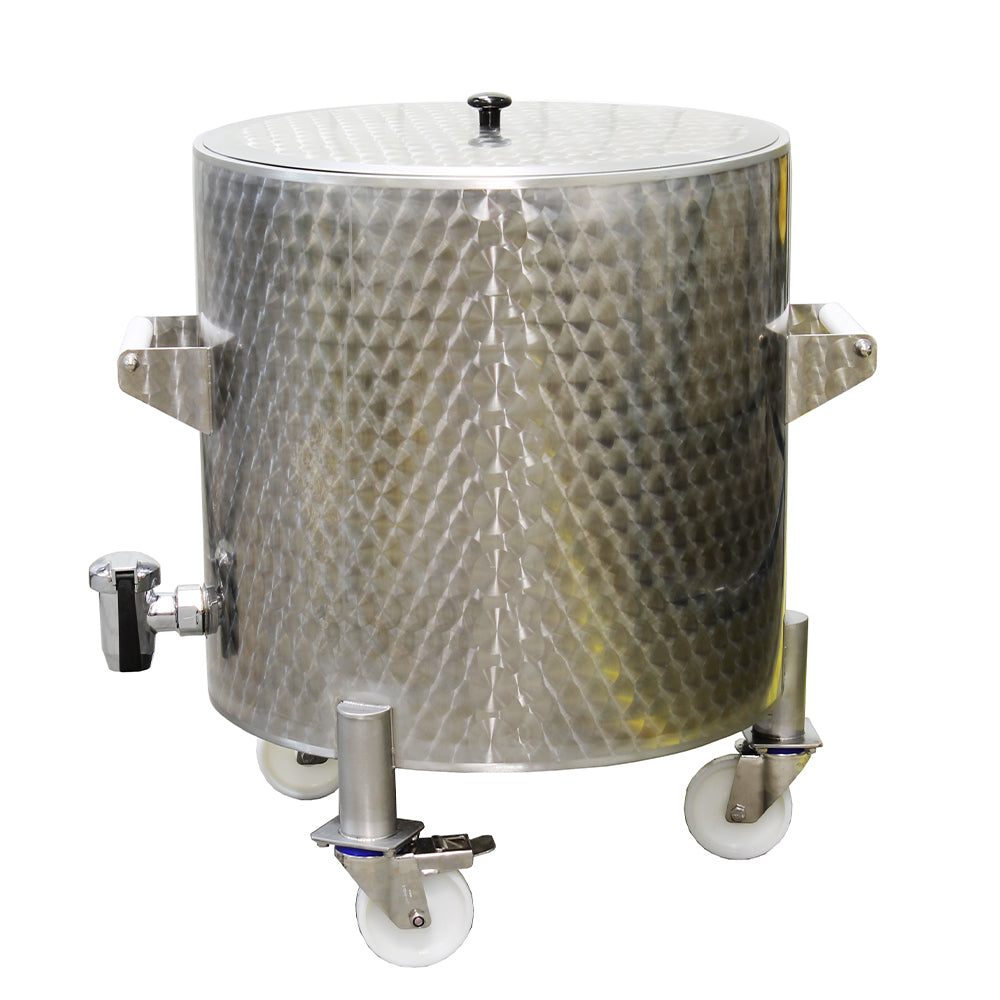

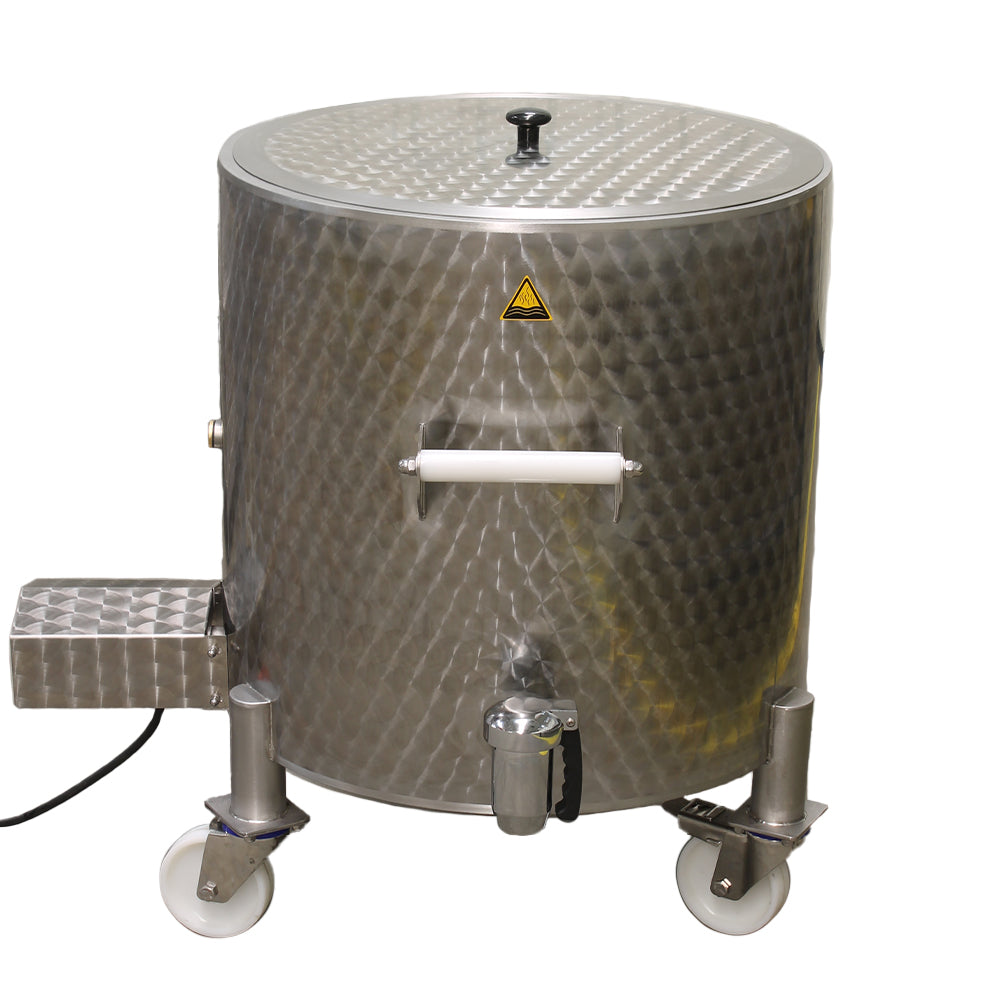

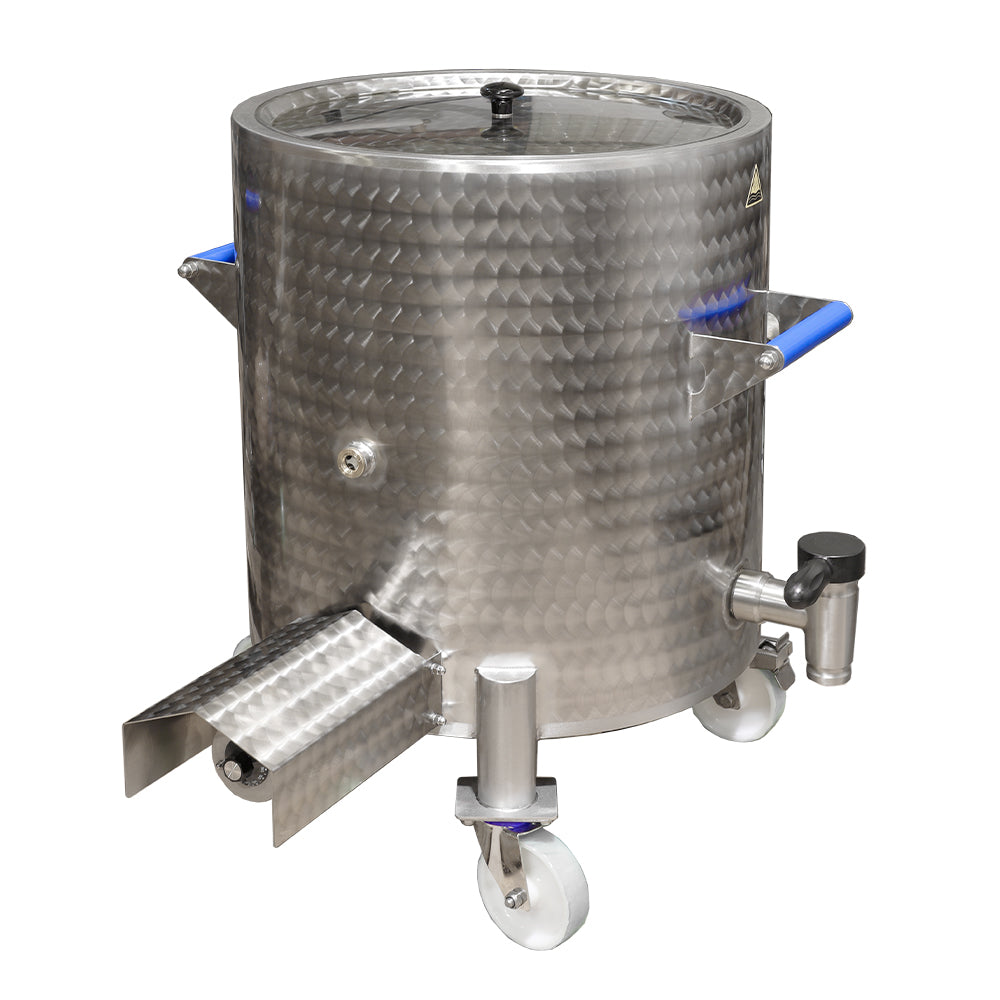

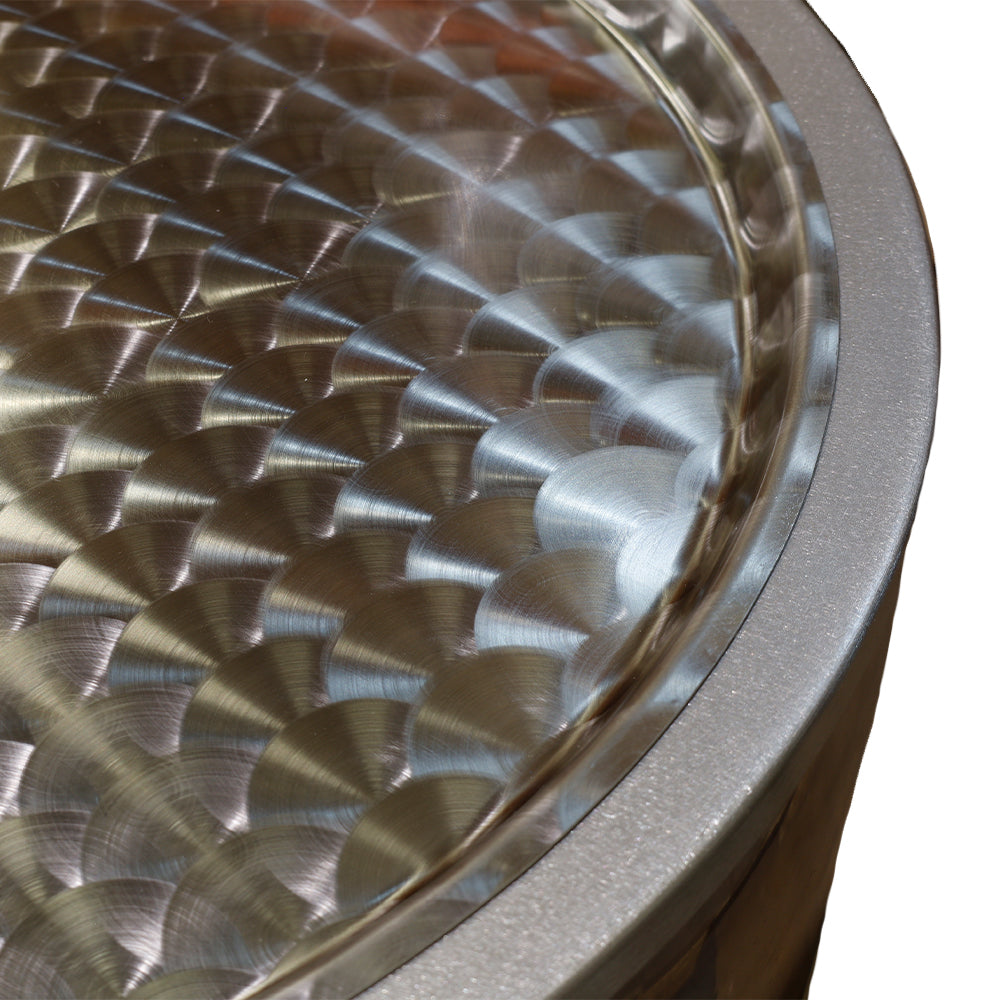

Our electric boiling pan delivers efficient and uniform heat treatment for liquids across multiple environments including food, pharmaceutical and cosmetic production. Available in 90L (81L usable), 120L (103L usable) and 150L (122L usable) capacities. Each model features a dual-wall 304-grade stainless steel construction with glycerine securely encased between the inner and outer walls for indirect, even heating. The stainless steel is circular polished, providing a smooth, low-glare, non-porous surface that is very easy to clean but continues to look attractive through years of commercial kitchen service.

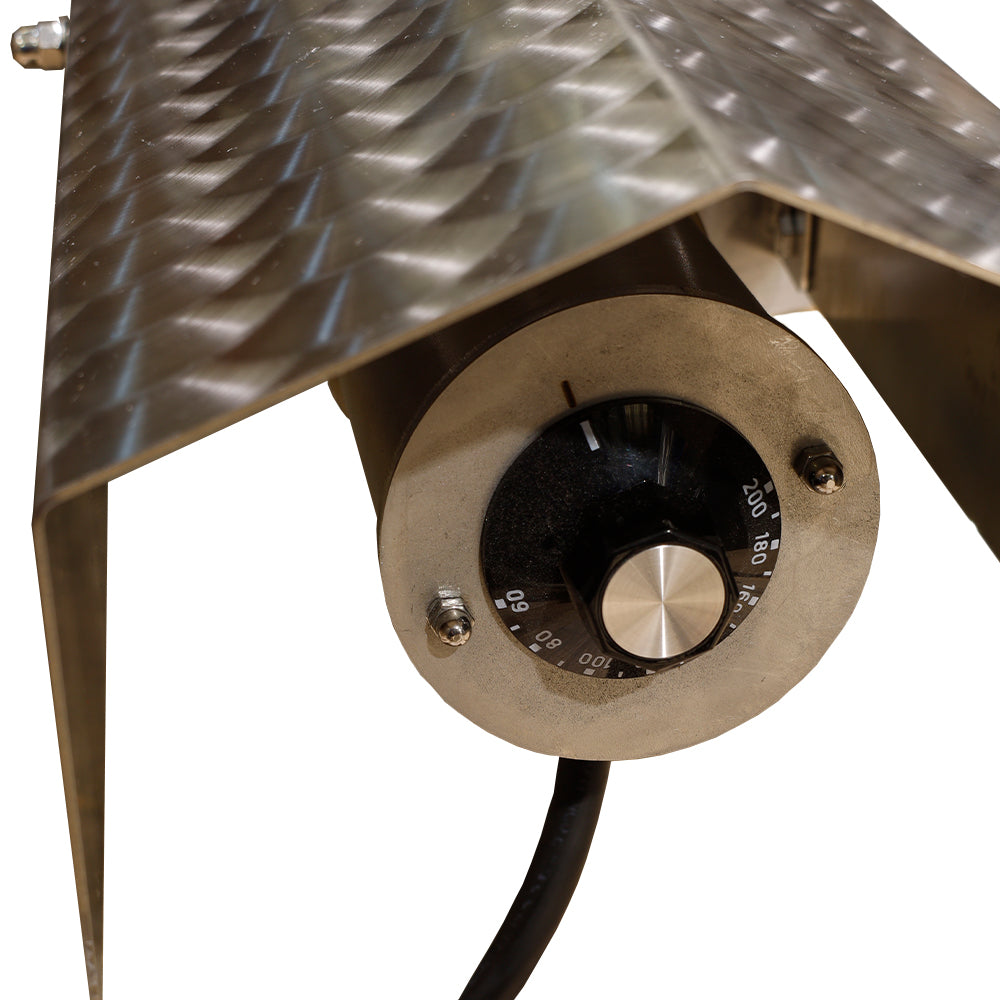

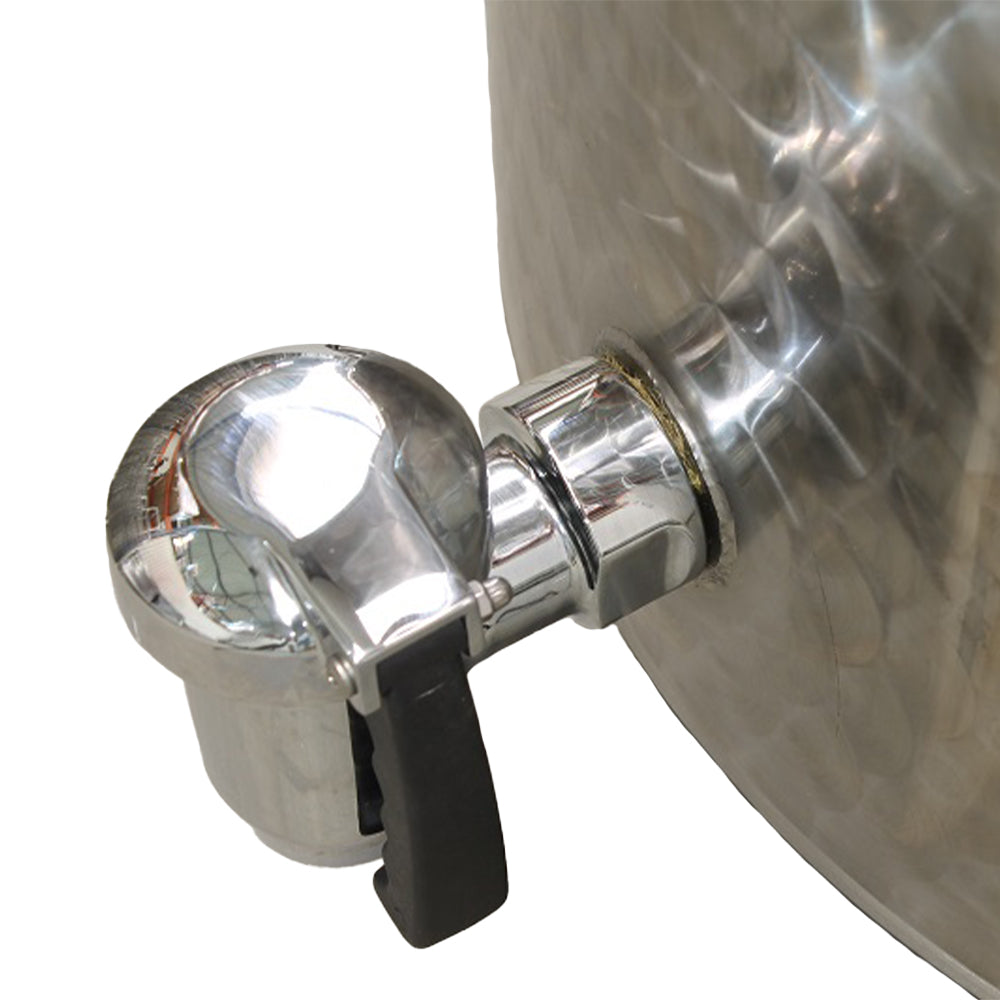

This indirect glycerine heating method reduces the risk of burning product, offering gentle, controlled processing without direct contact with heating elements. The manually adjustable thermostat ranges from 60°C to 200°C (accuracy -8/+12°C), allowing for precise thermal control. The 38mm BSP drain valve has a floor clearance of 256mm, which ensures easy and hygienic emptying, while a glycerine sight glass and overflow tube support safe operation. The temperature controller is equipped with a protective cover, preventing damage during operation and while moving the pan.

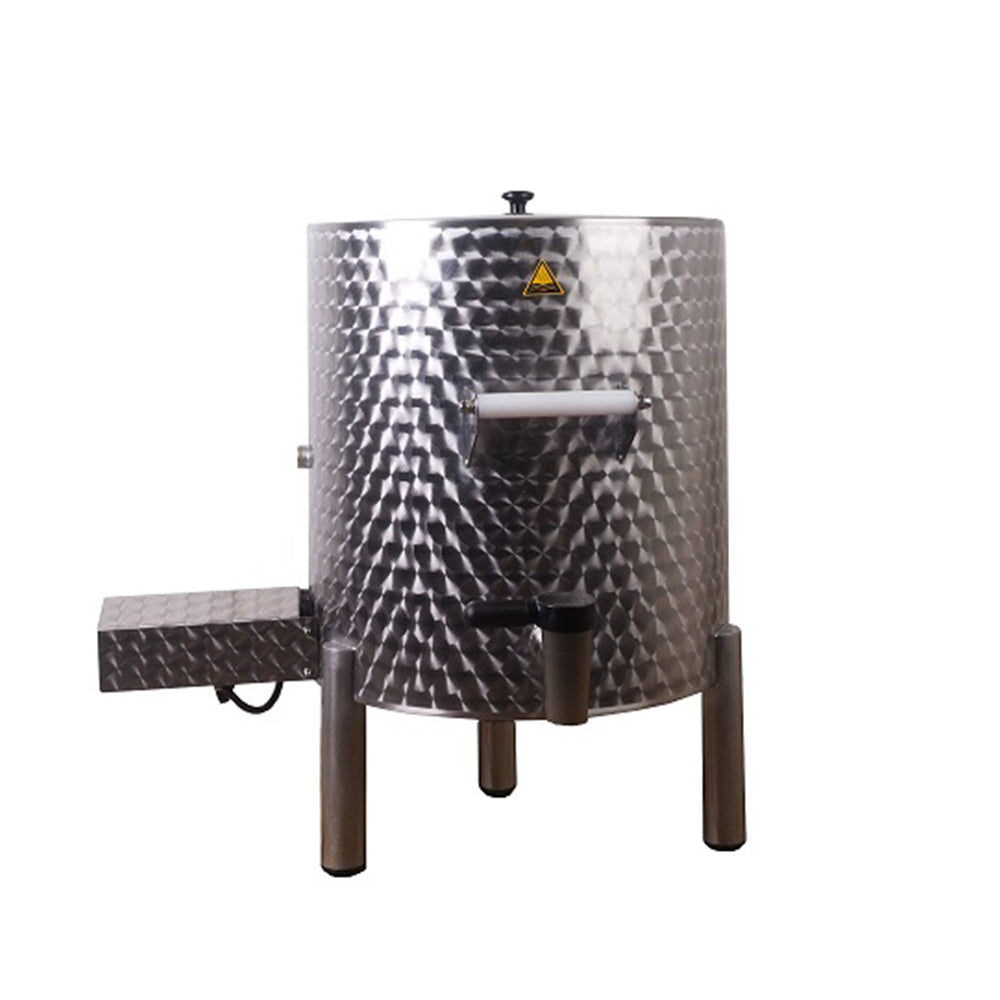

Static and mobile units are available, with a choice of three adjustable polyamide feet or BZP castors (one lockable) to suit a wide range of production spaces. Designed with hygiene and operator safety at its core, the pot includes IP64 ingress protection, food-safe contact surfaces and clear operating guidance. Suitable for indoor use in controlled environments, it is ideal for batch heating tasks where hygiene, consistency and ease of maintenance are essential.
<h3>90 Litre:</h3>
<ul>
<li>Width: 600mm</li>
<li>Depth: 883mm</li>
<li>Height: 775mm</li>
<li>Internal: 538mm dia x height 445mm</li>
</ul>
<h3>120 Litre:</h3>
<ul>
<li>Width: 600mm</li>
<li>Depth: 883mm</li>
<li>Height: 860mm</li>
<li>Internal: 540mm dia x height 530mm</li>
</ul>
<h3>150 Litre:</h3>
<ul>
<li>Width: 660mm</li>
<li>Depth: 944mm</li>
<li>Height: 860mm</li>
<li>Internal: 600mm dia x height 530mm</li>
</ul>
<ul>
<li>304-grade stainless steel with circular polish.</li>
<li>Indirect glycerine heating.</li>
<li>Thermostat range 60°C–200°C.</li>
<li>Drain valve 38mm.</li>
<li>3 phase electrical installation , 400v / 50 Hz, 16 Amp, 6 to 9Kw element (depending on size).</li>
<li>IP64 rated.</li>
<li>Choice of 3 x adjustable feet or BZP castors (2 fixed & 1 lockable).</li>
<li>Supplied with UK plug.</li>
</ul>
Electric commercial boiling pan with indirect heat
Product code :
SKU:FPBP-E90
Couldn't load pickup availability
Our electric boiling pan delivers efficient and uniform heat treatment for liquids across multiple environments including food, pharmaceutical and cosmetic production. Available in 90L (81L usable), 120L (103L usable) and 150L (122L usable) capacities. Each model features a dual-wall 304-grade stainless steel construction with glycerine securely encased between the inner and outer walls for indirect, even heating. The stainless steel is circular polished, providing a smooth, low-glare, non-porous surface that is very easy to clean but continues to look attractive through years of commercial kitchen service.
This indirect glycerine heating method reduces the risk of burning product, offering gentle, controlled processing without direct contact with heating elements. The manually adjustable thermostat ranges from 60°C to 200°C (accuracy -8/+12°C), allowing for precise thermal control. The 38mm BSP drain valve has a floor clearance of 256mm, which ensures easy and hygienic emptying, while a glycerine sight glass and overflow tube support safe operation. The temperature controller is equipped with a protective cover, preventing damage during operation and while moving the pan.
Static and mobile units are available, with a choice of three adjustable polyamide feet or BZP castors (one lockable) to suit a wide range of production spaces. Designed with hygiene and operator safety at its core, the pot includes IP64 ingress protection, food-safe contact surfaces and clear operating guidance. Suitable for indoor use in controlled environments, it is ideal for batch heating tasks where hygiene, consistency and ease of maintenance are essential.
<h3>90 Litre:</h3>
<ul>
<li>Width: 600mm</li>
<li>Depth: 883mm</li>
<li>Height: 775mm</li>
<li>Internal: 538mm dia x height 445mm</li>
</ul>
<h3>120 Litre:</h3>
<ul>
<li>Width: 600mm</li>
<li>Depth: 883mm</li>
<li>Height: 860mm</li>
<li>Internal: 540mm dia x height 530mm</li>
</ul>
<h3>150 Litre:</h3>
<ul>
<li>Width: 660mm</li>
<li>Depth: 944mm</li>
<li>Height: 860mm</li>
<li>Internal: 600mm dia x height 530mm</li>
</ul>
<ul>
<li>304-grade stainless steel with circular polish.</li>
<li>Indirect glycerine heating.</li>
<li>Thermostat range 60°C–200°C.</li>
<li>Drain valve 38mm.</li>
<li>3 phase electrical installation , 400v / 50 Hz, 16 Amp, 6 to 9Kw element (depending on size).</li>
<li>IP64 rated.</li>
<li>Choice of 3 x adjustable feet or BZP castors (2 fixed & 1 lockable).</li>
<li>Supplied with UK plug.</li>
</ul>
