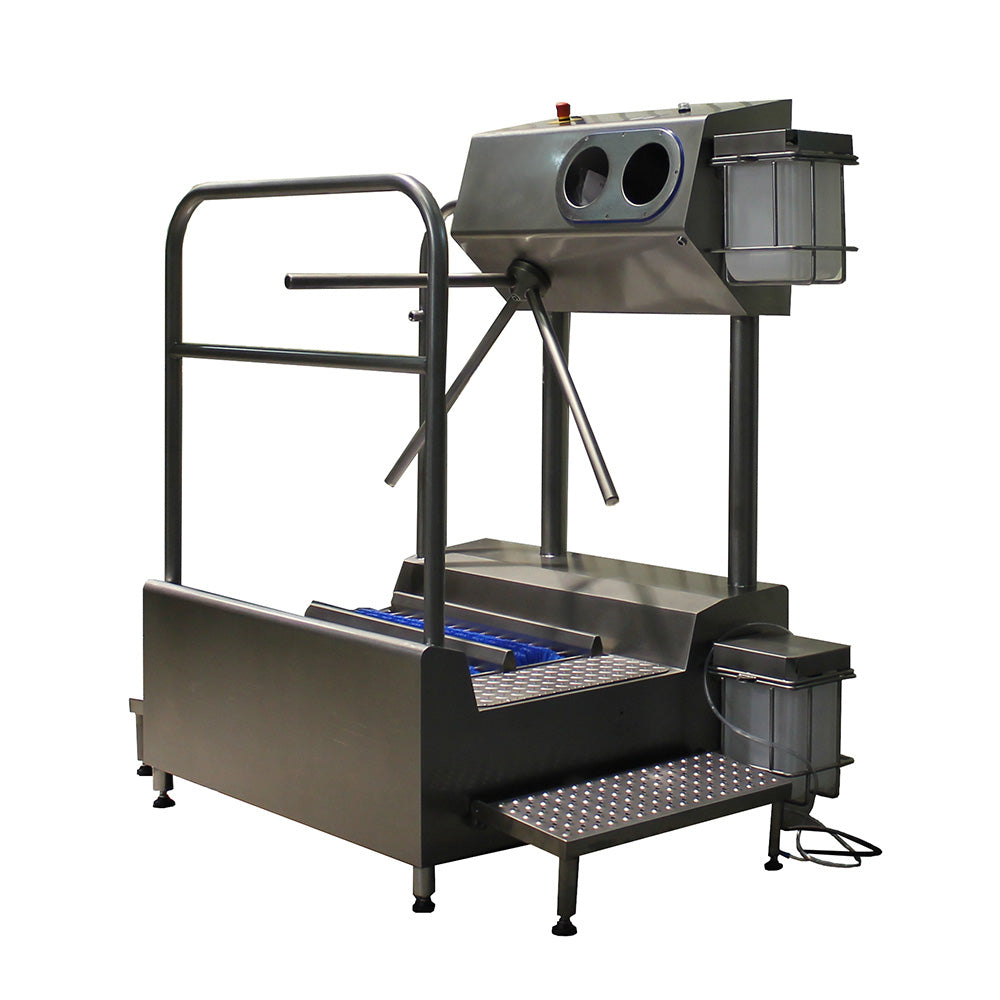

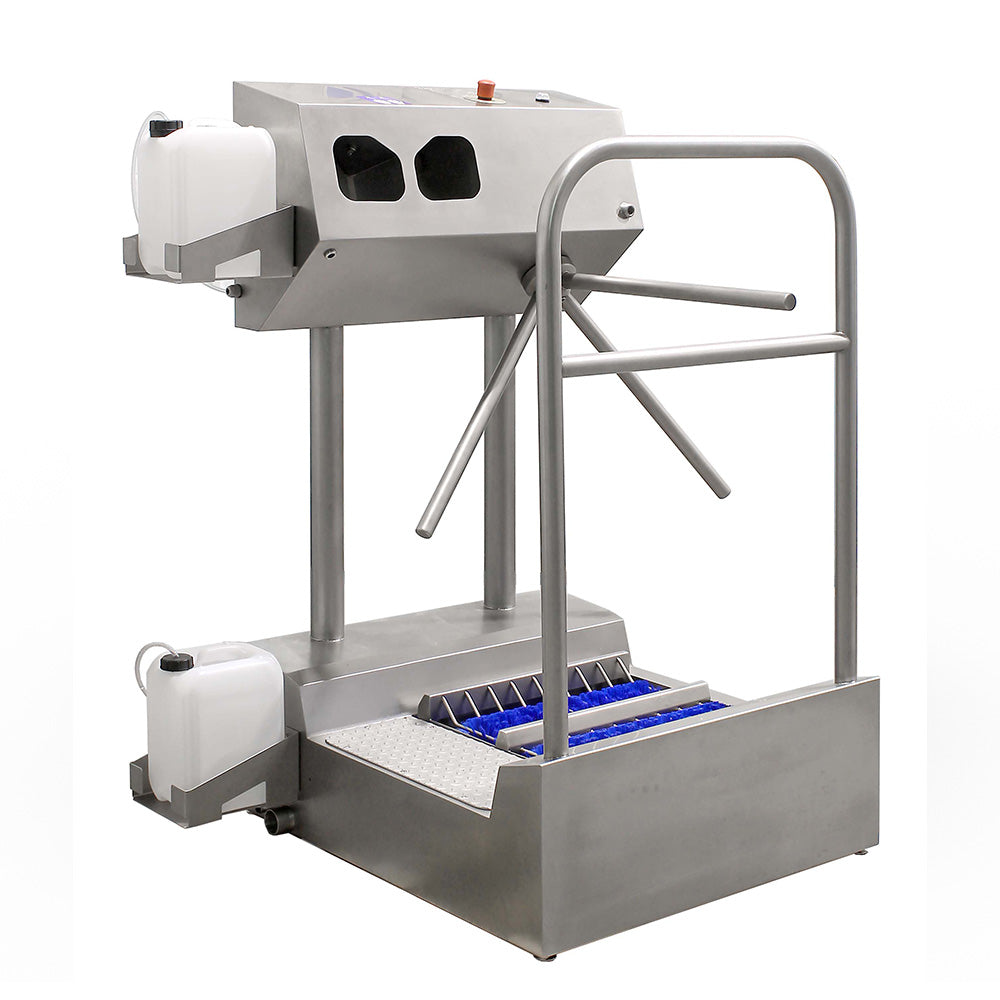

Hygiene station with sole washer and hand sanitisation

Our hygiene station combines sole washing and hand sanitization, streamlining the process for operators entering or exiting production areas. A green/red light indicator allows exit via a turnstile once sensor is activated, ensuring thorough hygiene and minimizing contamination risk. 6-10 operatives per minute.
HWHS-SWL2D47

Price:
Sale price£7,995.00
Sale price£9,594.00 (Inc. VAT)

Description

Our hygiene station with integrated shoe sole washer is the perfect solution for production areas to ensure that soles are washed and hands are sanitised as part of a one step hygiene process and provide a quick and high level of operator throughput before entering or exiting different locations.

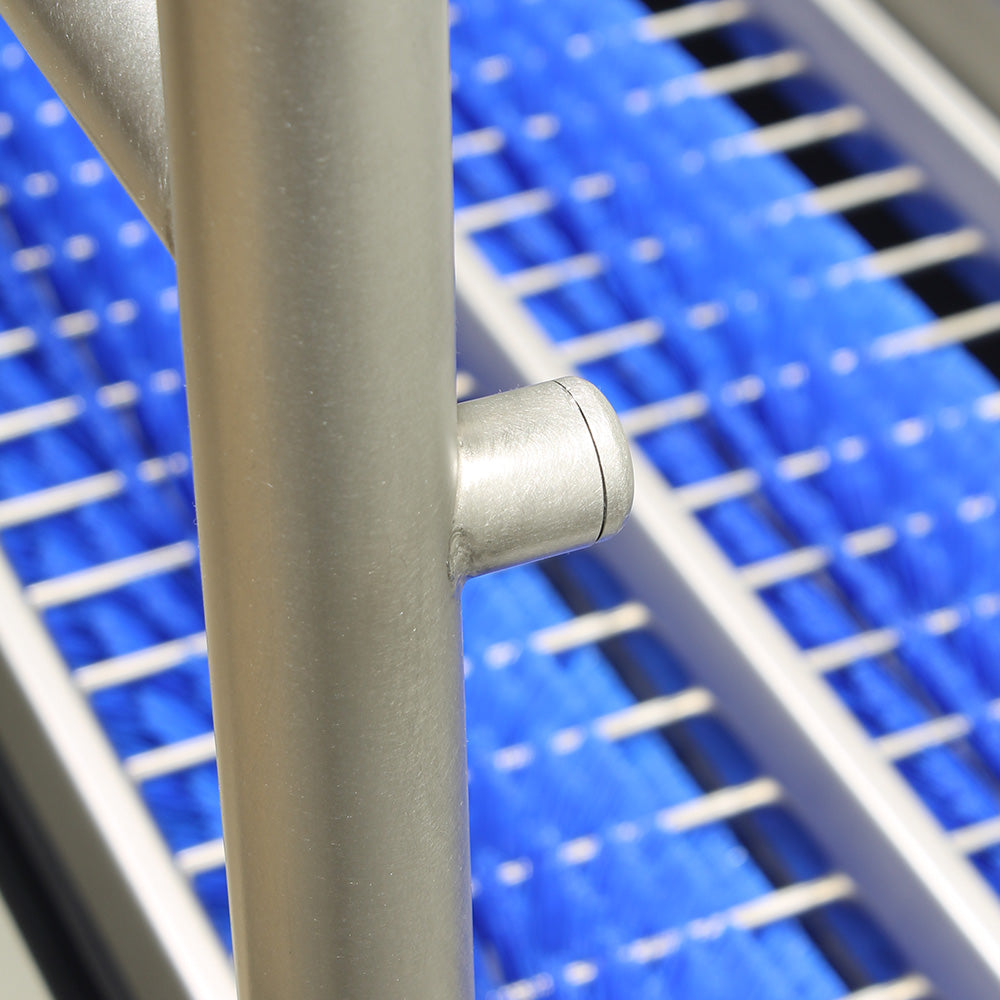

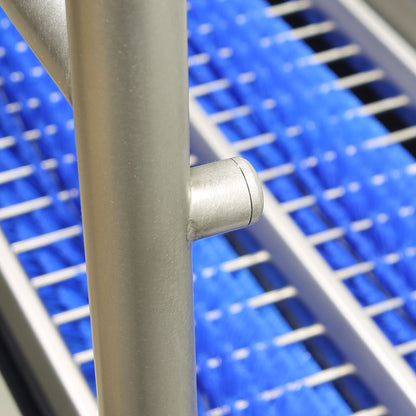

The operative pass over the rotating brushes where a solution of washing and disinfection fluid is sprayed to wash the soles of the shoe. Simultaneously, both hands (palms up) enter the disinfection chambers, where they are sprayed once sensors activated. The unit features a green/red (go/stop) light indicator, and once the sensors are activated, the turnstile unlocks, allowing operatives to pass through.  6-10 operatives can pass through this hygiene station per minute.

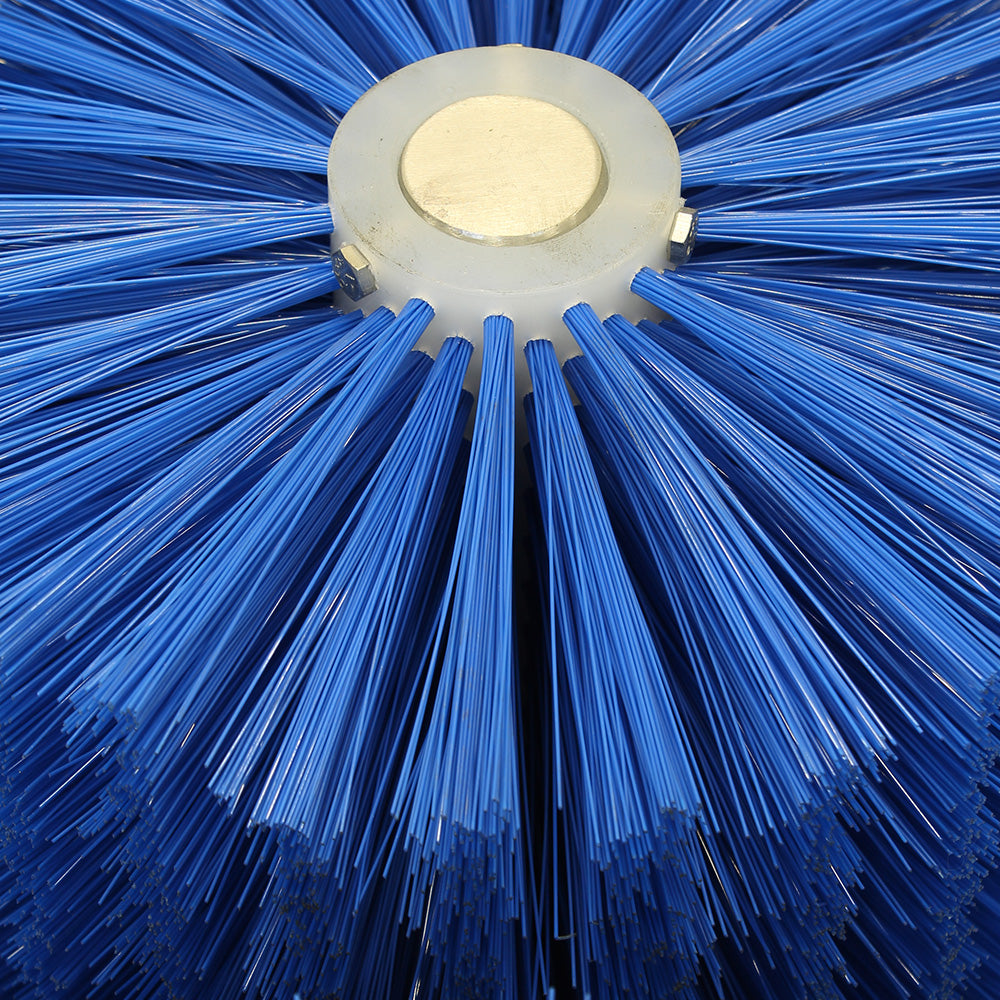

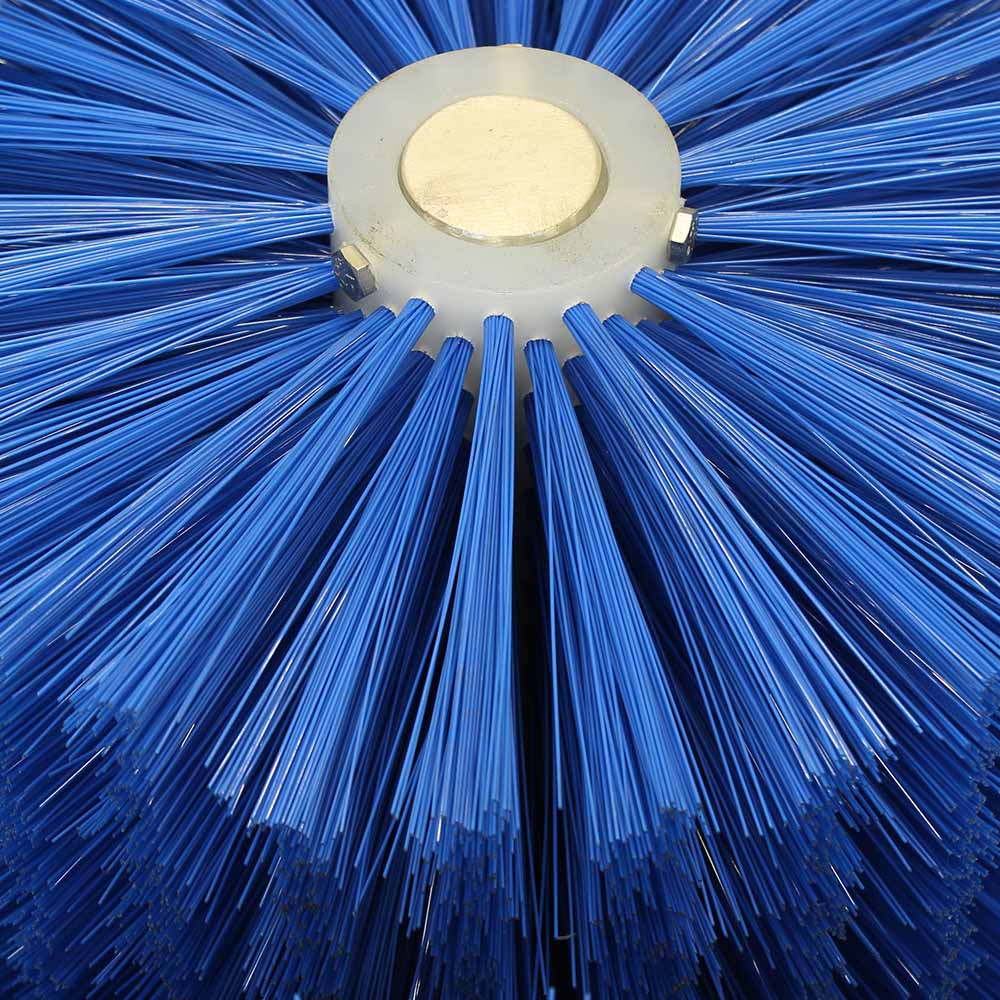

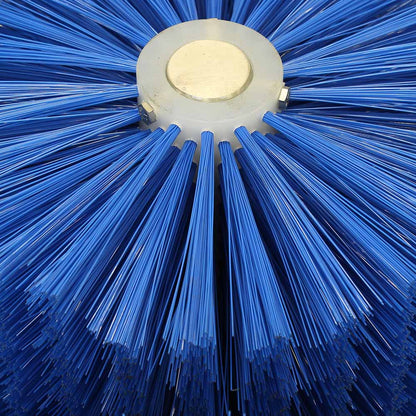

This unit features an anti-panic function which stops the brushes and unlocks the turnstile to allow operatives to exit an area quickly in and emergency. It also offers a tool-free, quick, and easy-to-remove brushes for effortless cleaning between shift and maintenance.

The combination of shoe sole washer and dispenser ensures an all-round hygiene flow, negating the possibility of human error in the changing room / gowning flow and minimising the risk of outside contamination.

Dimensions

Walk through 475mm:

  • Width: 965mm
  • Length: 865mm
  • Height: 1530mm

Walk through 715mm:

  • Width: 1100mm
  • Length: 11700mm
  • Height: 1720mm

Specifications

  • 304-grade stainless steel.
  • Floor levelling feet.
  • Turnstile with left or right orientation, one or two directions (475mm only 2 directions)
  • Ability to adjust the amount of liquid dispensed and station reset time.
  • Power Supply 3x 400V, 16A 50Hz.
  • Control Voltage 24V DC , install power 0.6KW (475mm) 0.25KW (715mm).
  • Water supply 20mm, water drainage: diam 50mm.
  • IP rate 65.
Spec sheet download
