Hygiene station with hand soap washer, dryer and sanitisation & a sole washer with a TFT touch panel

Our all-encompassing hygiene station with a green/red light indicator which allows exit via a turnstile once sensor is activated, is the perfect solution for production areas to ensure that both hands and feet are cleaned as part of a one-step hygiene process. 2-4 operatives per minute.
HWHS-SWDEL1D71

Price:
Sale price£16,795.00
Sale price£20,154.00 (Inc. VAT)

Description

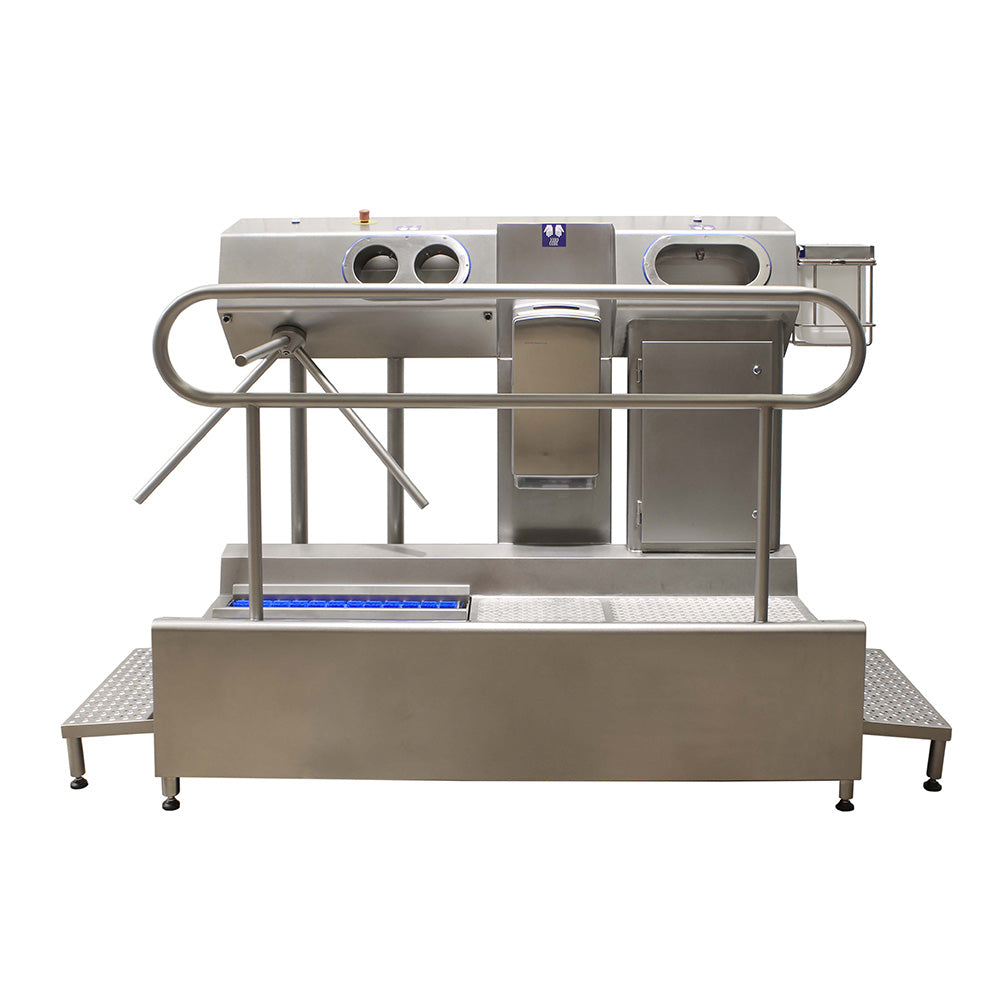

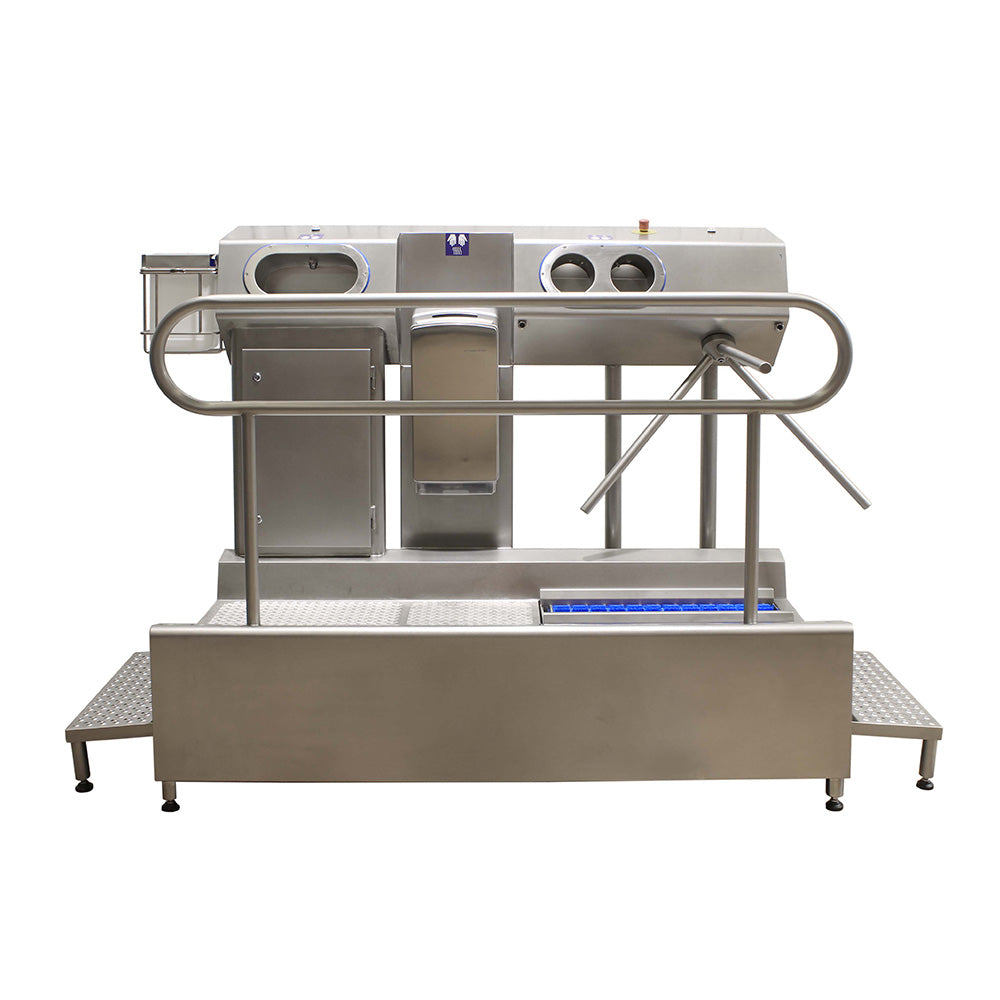

In addition to the shoe sole washer, the integrated hygiene station consists of both a soap and sanitiser dispenser with the hand dryer positioned after the soap dispenser to dry the operatives’ hands before sanitising, The operative then enters the production area through the turnstile which automatically allows entry once the hands have been sanitised.

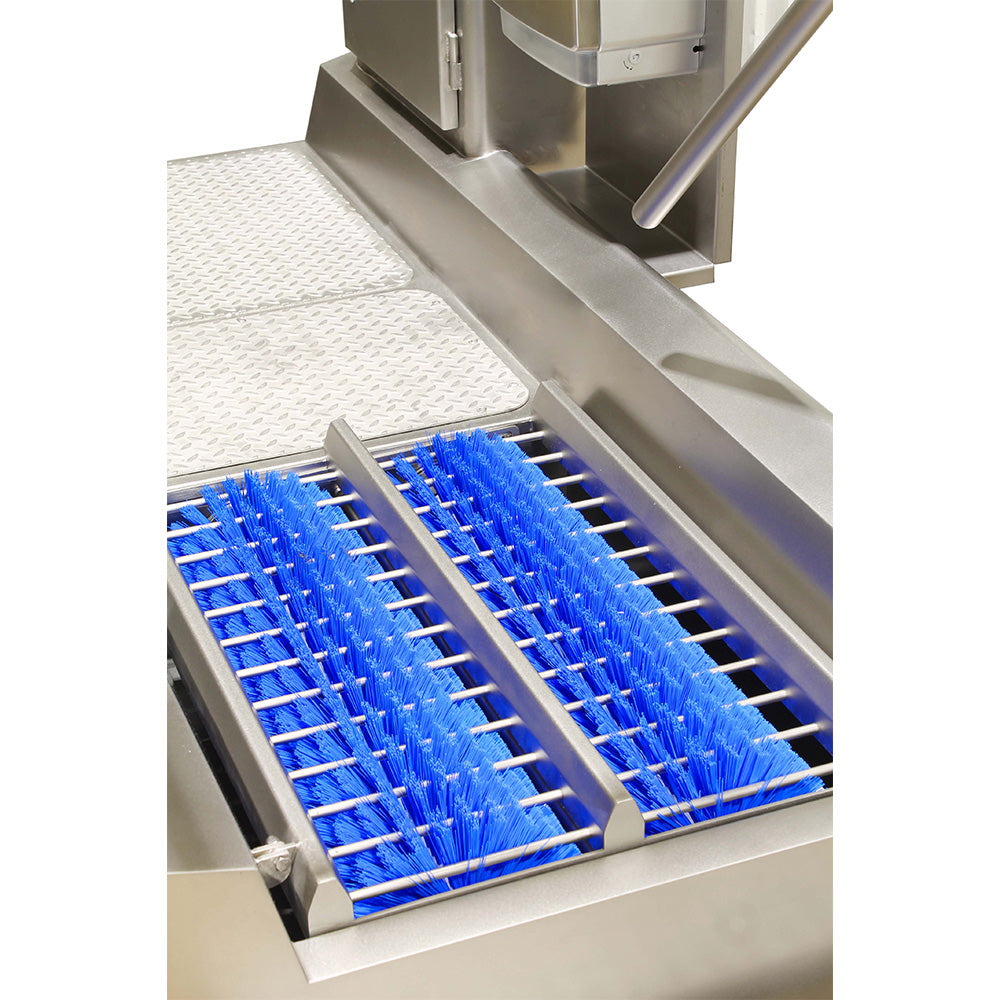

The unit features a green/red (go/stop) light indicator, and once the sanitiser sensors are activated, the turnstile unlocks, allowing operatives to pass through.  Also in the concealed column housing a TFT touch panel to allow for easy and simple adjustment to the amount of liquid dispensed and station reset time and the sanitizer solution bottle and an anti-panic function which stops the brushes and unlocks the turnstile to allow operatives to exit an area quickly in and emergency.  It also offers a tool-free, quick, and easy-to-remove brushes for effortless cleaning between shift and maintenance.

2 - 4 operatives can pass through this hygiene station per minute.
(Wetting hands:  1 second, Dosing the detergent:  3 seconds Hand washing: 2 seconds, Rinsing the detergent: 2 seconds, Dyson hand dryer:  12 seconds (this is not necessary for the correct operation of the station), Sole washer: 5 seconds, Hand disinfection: 0.3 seconds)

The combination of shoe sole washer and dispenser/dryer ensures an all-round hygiene flow, negating the possibility of human error in the changing room / gowning flow and minimising the risk of outside contamination.

Dimensions

Walk through 715mm:

  • Width: 1130mm
  • Length: 2545mm
  • Height: 1720mm

Specifications

  • 304-grade stainless steel.
  • One or two direction with left or right orientation turnstile.

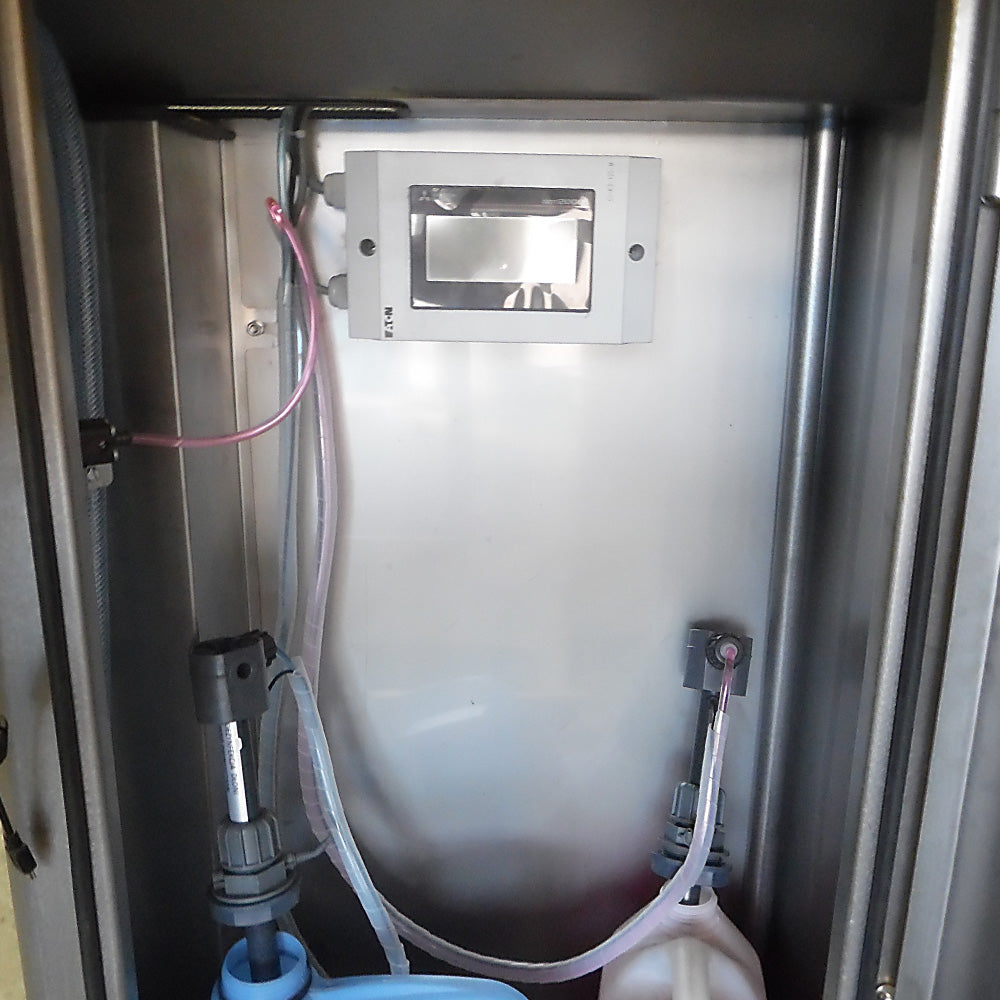

  • 3.8" TFT touch panel to adjust the amount of liquid dispensed and station reset times.
  • 20 litre soap and sanitiser tank capacity.
  • Supply voltage: 400 V / 50 Hz, install power 1.6KW.
  • Water connection: 20mm male thread, outlet pipe 50mm Dia.
  • Water pressure: min 0.5 bar max 5 Bar.
  • Weight 340kg.
  • Sanitiser bottles included.
Spec sheet download
