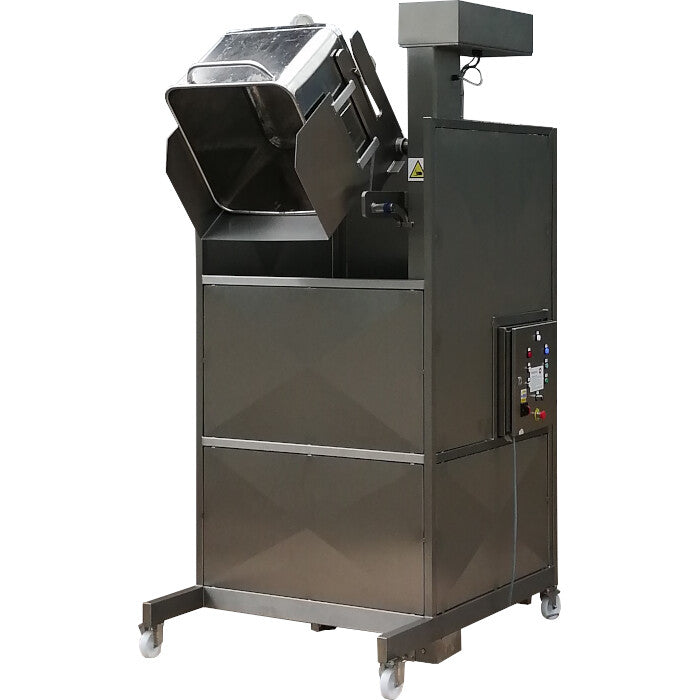

Our Mobile Guarded Motor Driven Pillar Euro Bin Tipper is expertly crafted to lift and tip a stainless 200 litre euro tub with a safe working load of 300kgs. The guard door is electrically and mechanically interlocked preventing the Tipper from operating when the door is open. The guard door can only be opened when the lift carriage is at the full down position to prevent access whilst a load is raised.
Fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER).
The Tipper operation is latched so that pressing the ‘Up’ push button once will raise the lift to the full tip position. Once the product has been discharged, pressing the ‘Down’ push button once will return the Guarded Dump Buggie Tipper to the full down position.
The control panel has the facility for a ‘Call to Run’ signal to be connected if required.
We offer many customised options specific to what is being handled, please call us on 01603 788 833.
- Overall Height: 2.92m
- Machine Handing: Left Hand
- Maximum Headroom: 3m
- Tipping Chute: No
- Container Description: 200 LITRE TOTE BIN
- Base Arrangement: Mobile on 2 fixed & 2 swivel castors
