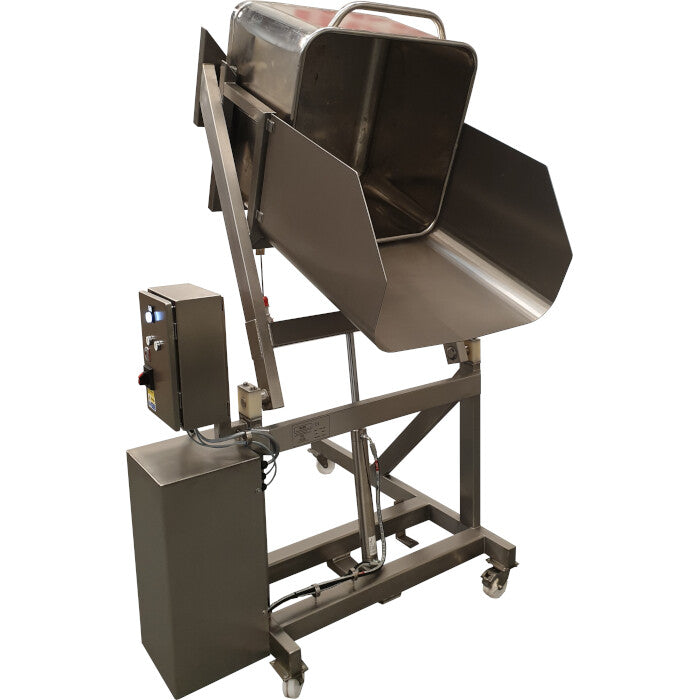

Our Mobile Hydraulic Euro Bin Tipper lifts and tips a stainless 200 or 300 Litre eurobin at a height of 1m and at a Safe Working Load of 300kgs.
Constructed from Grade 304 stainless steel and is mobile on castors. Powered via a hydraulic powerpack which tips the container by the extension of a stainless steel hydraulic cylinder to an angle of 30 degrees past the horizontal. The hydraulic cylinder is fitted with a safety check valve such that even in the unlikely event of a hydraulic hose failure, the raised bin will not fall to the floor.
Fitted with an IP65 Stainless Steel Control Panel mounted on the main frame to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). Operates on a ‘hold to run’ principle such that the ‘Up’ or‘Down’ pushbuttons must be held for the Tipper to operate. As soon as either button is released, the Tipper will stop. The control panel has the facility for a ‘Call to Run’ signal to be connected if required.
We offer many customised options specific to what is being handled, please call us on 01603 788 833.
- Machine Handing: Right Hand
- Tipping Chute: Yes, fitted to lift carriage
- Container Suitability: 200 & 300 Litre Tote Bin
- Base Arrangement: Mobile On Castors With Brackets
- Powerpack: 0.55kW, 480V, 3 phase, 60 cycle
- Control Circuit: 24 VaclElectrical Weighting: IP65
