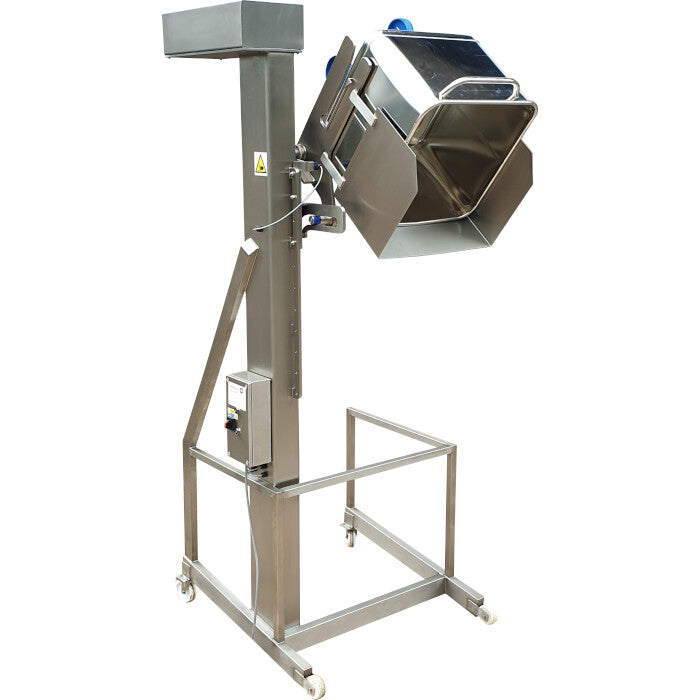

Our Mobile Motor Driven Pillar Euro Bin Tipper lifts andtips 200 or 300 Litre Euro bins at an adjustable discharge height of between 1.4m and 2.3m. The lifting is powered by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column.
Fitted with a safety latch which engages automatically in the extremely unlikely event of a lift chain failure. Fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER).
Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage with option of fine adjustment on site by trained personnel. Operates on a ‘hold to run’ principle such that the ‘Up’ or ‘Down’ pushbuttons must be held for the Tipper to operate. As soon as either button is released, the Dump Buggie Tipper will stop.
We offer many customised options specific to what isbeing handled, please call us on 01603 788 833.
- Container Suitability: 200 Litre Euro Bin or 300 Litre Euro Bin
- Base Arrangement: Mobile on Castors
- Limit Switches: Telemecanique
- Motor Detail: .75kw, 480v, 3 Phase, 60 Cycle C/W Brake
- Ratio: 50:1
- Load/Tension Chain: ¾” Simplex
- Tensile Strength: 3000 Kgs
- Lift Speed: 6.4 Meters/Minute
